MEET HIP 4FAMILY

LIKE NO OTHER

MEET HIP 4FAMILY

LIKE NO OTHER

Designed specifically for families, the motorhome provides a spacious, airy, and uncluttered living space for 4 people.

Designed specifically for families, the motorhome provides a spacious, airy, and uncluttered living space for 4 people.

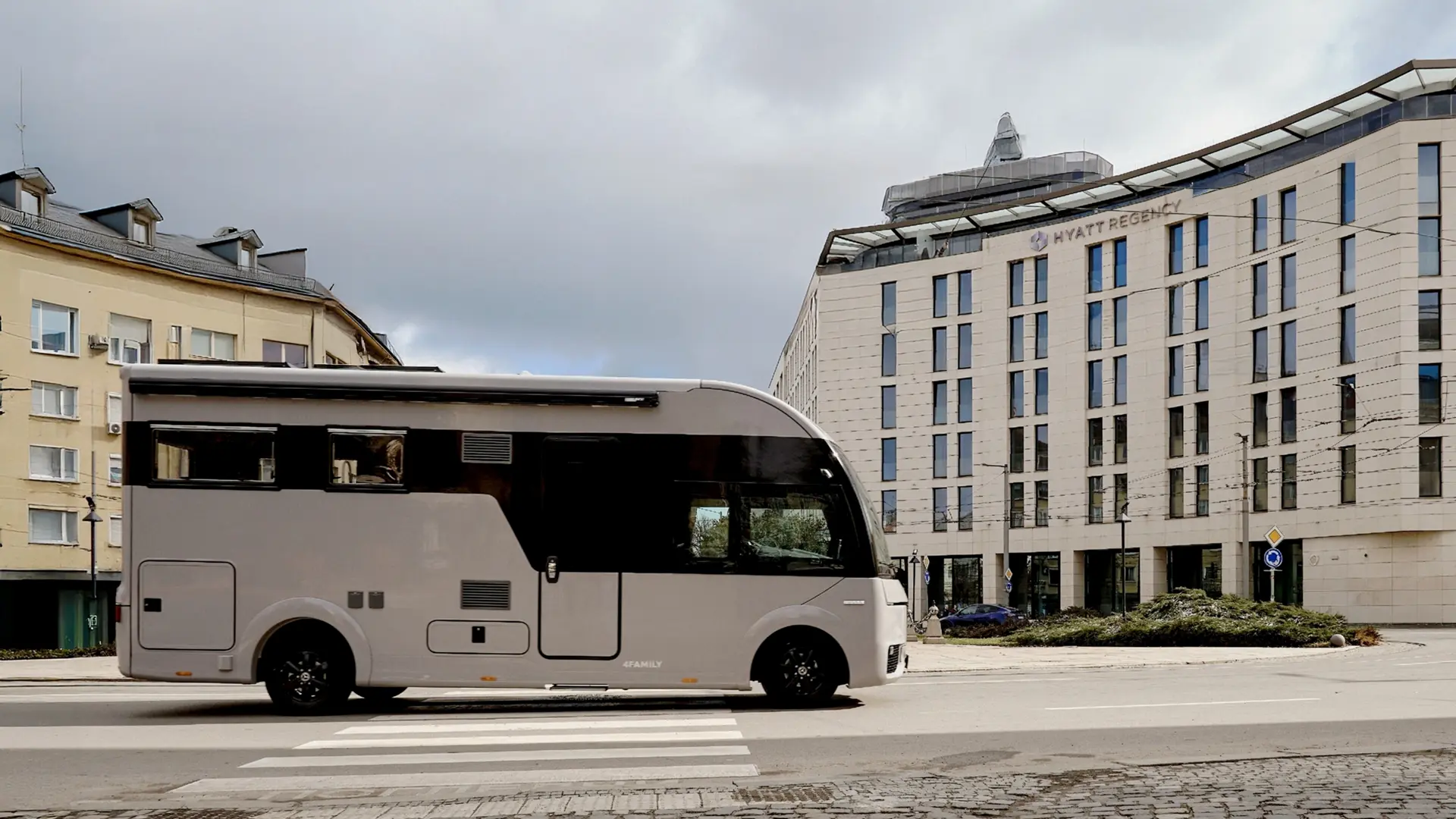

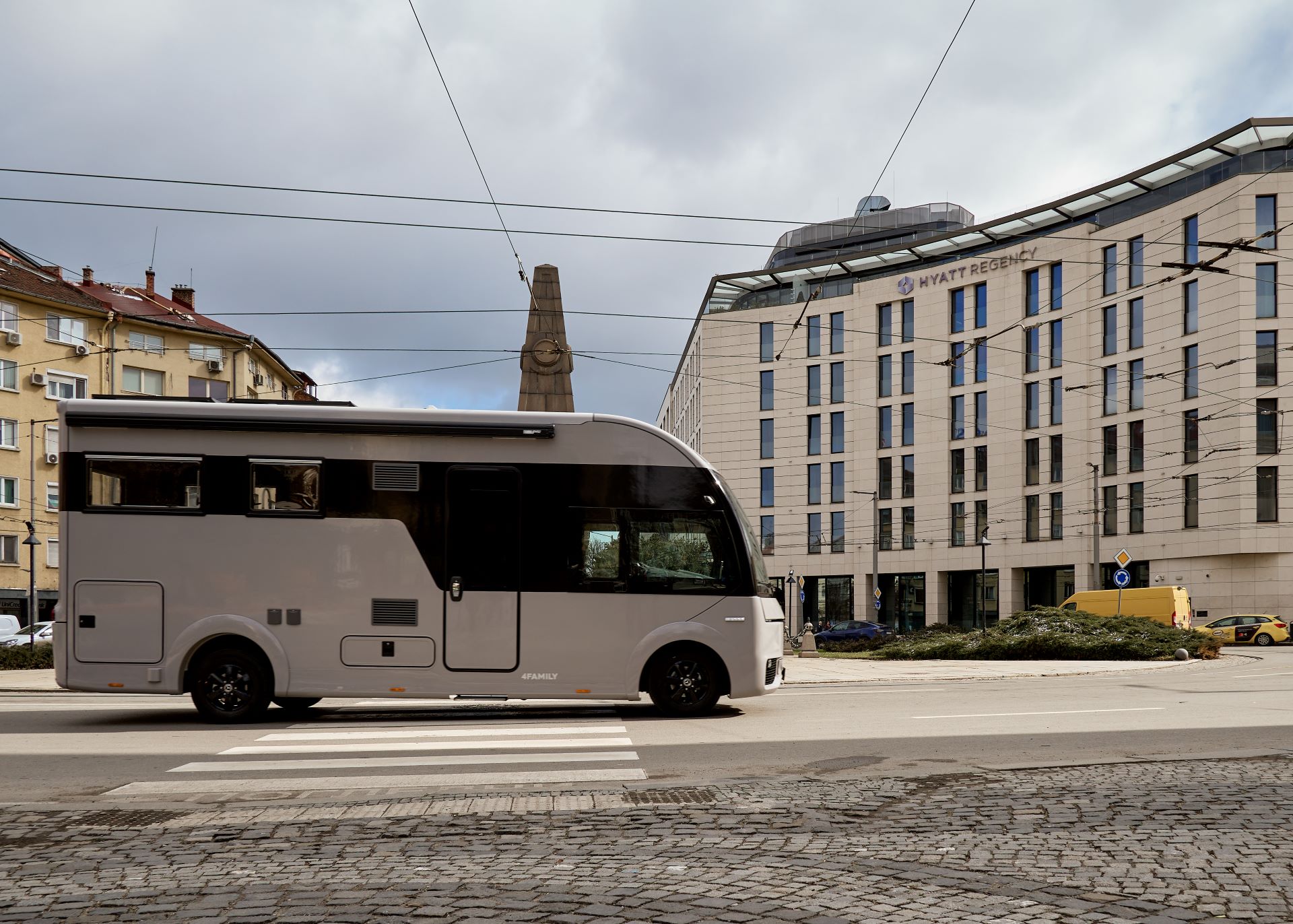

With a total length of just 7.2 meters, 4Family is short enough to navigate the streets of Tuscany, yet spacious enough for a family.

With a total length of just 7.2 meters, 4Family is short enough to navigate the streets of Tuscany, yet spacious enough for a family.

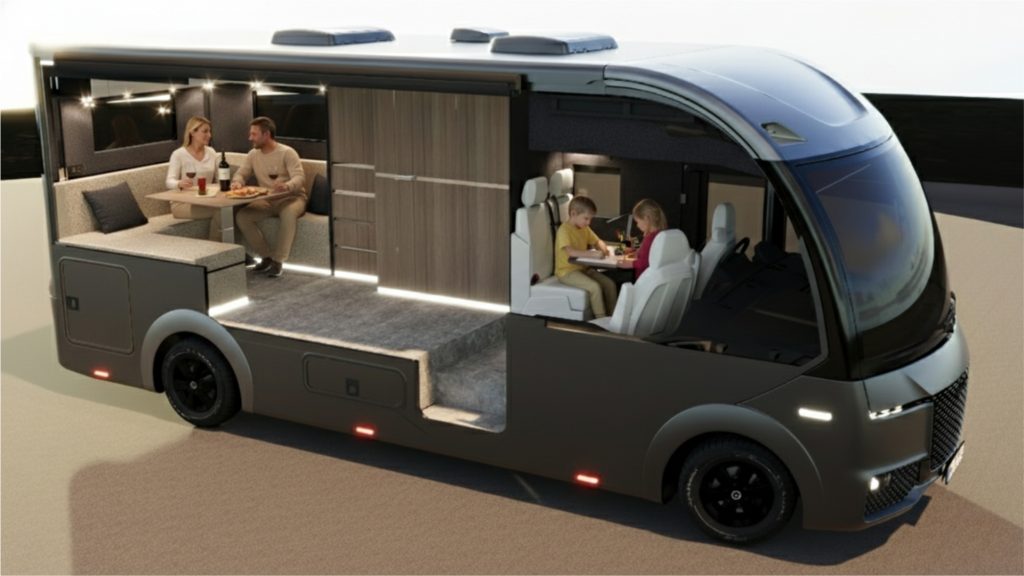

The 4Family motorhome offers two separate living areas – a large one for the whole family at the rear, and a smaller one for the children at the front.

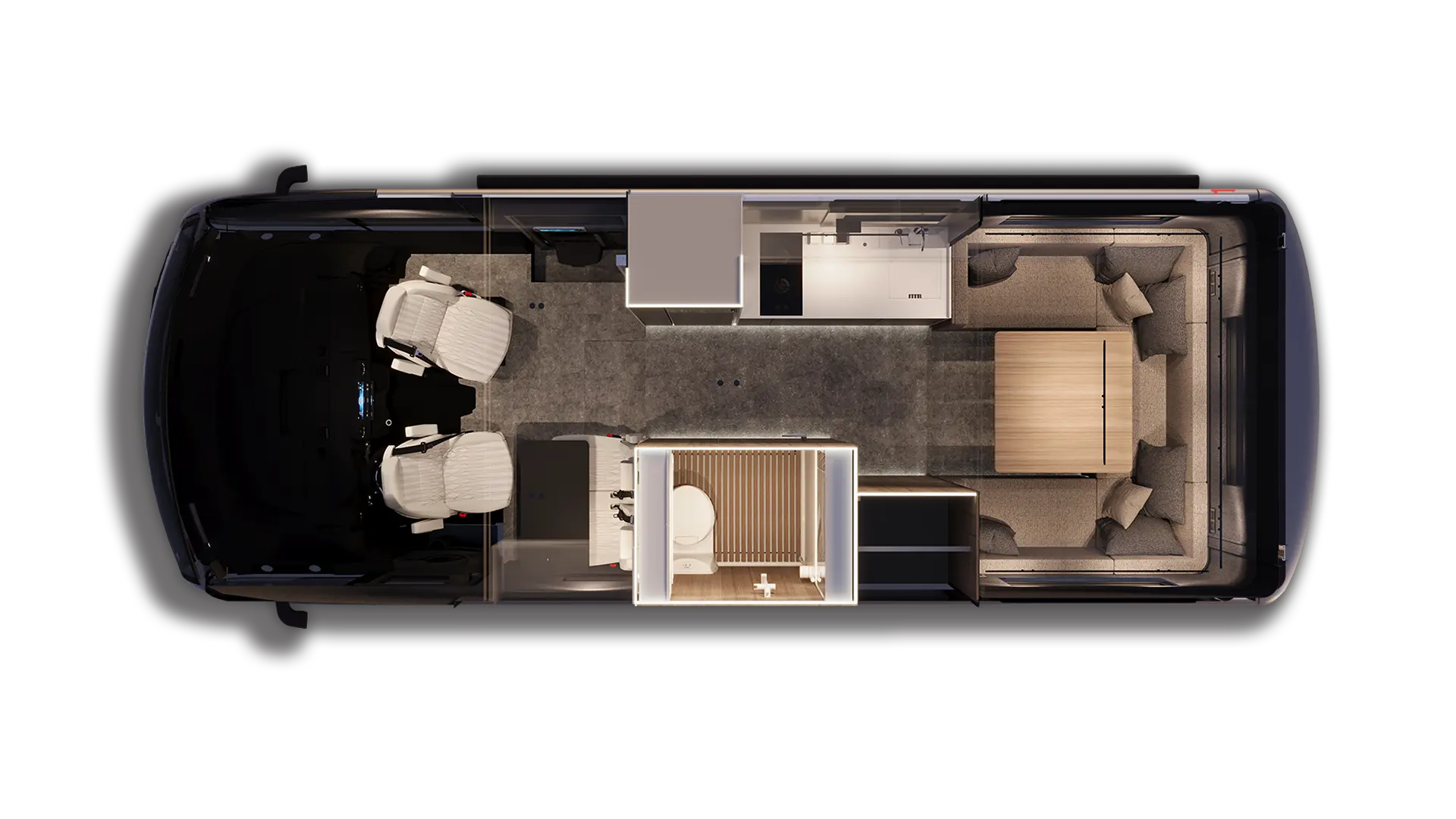

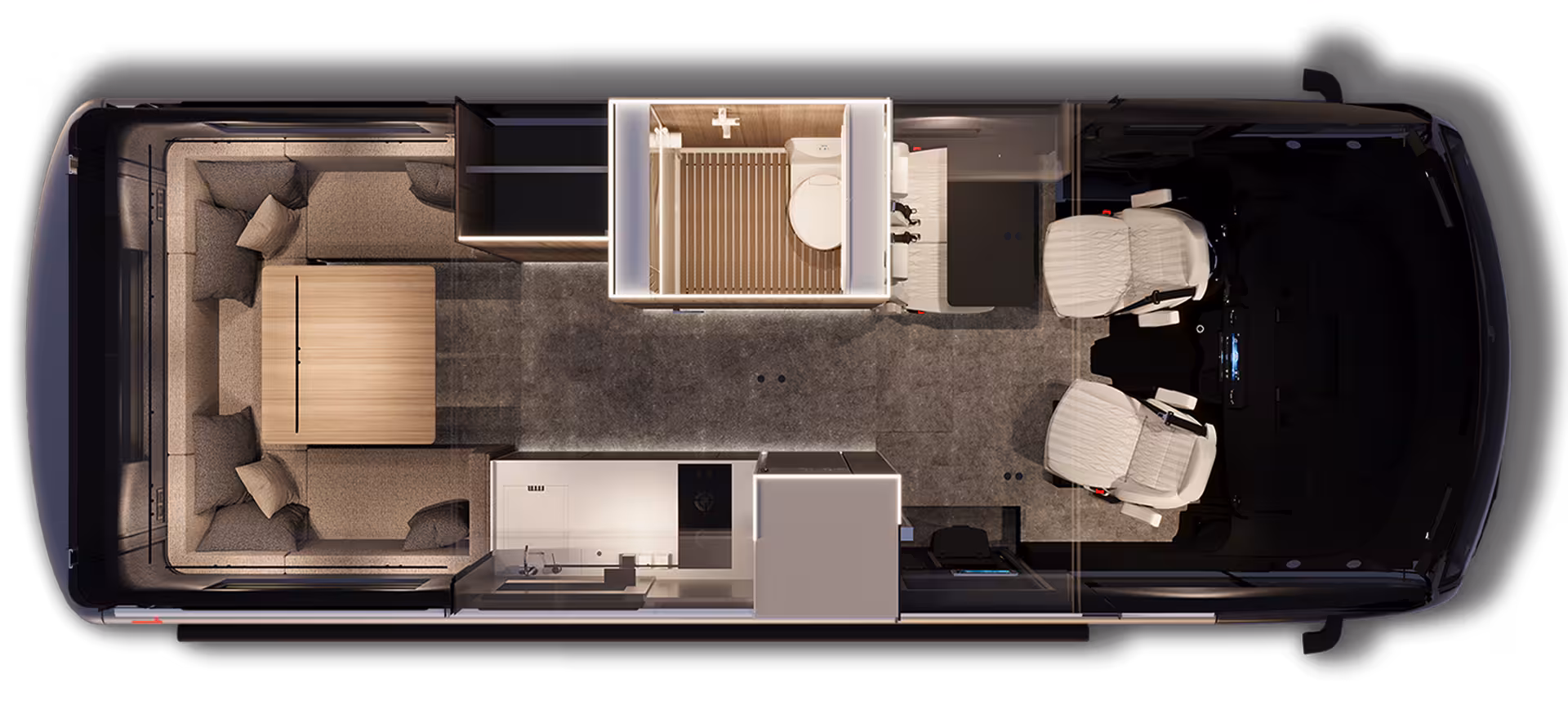

The day layout of 4Family, a family motorhome by HIP Campers.

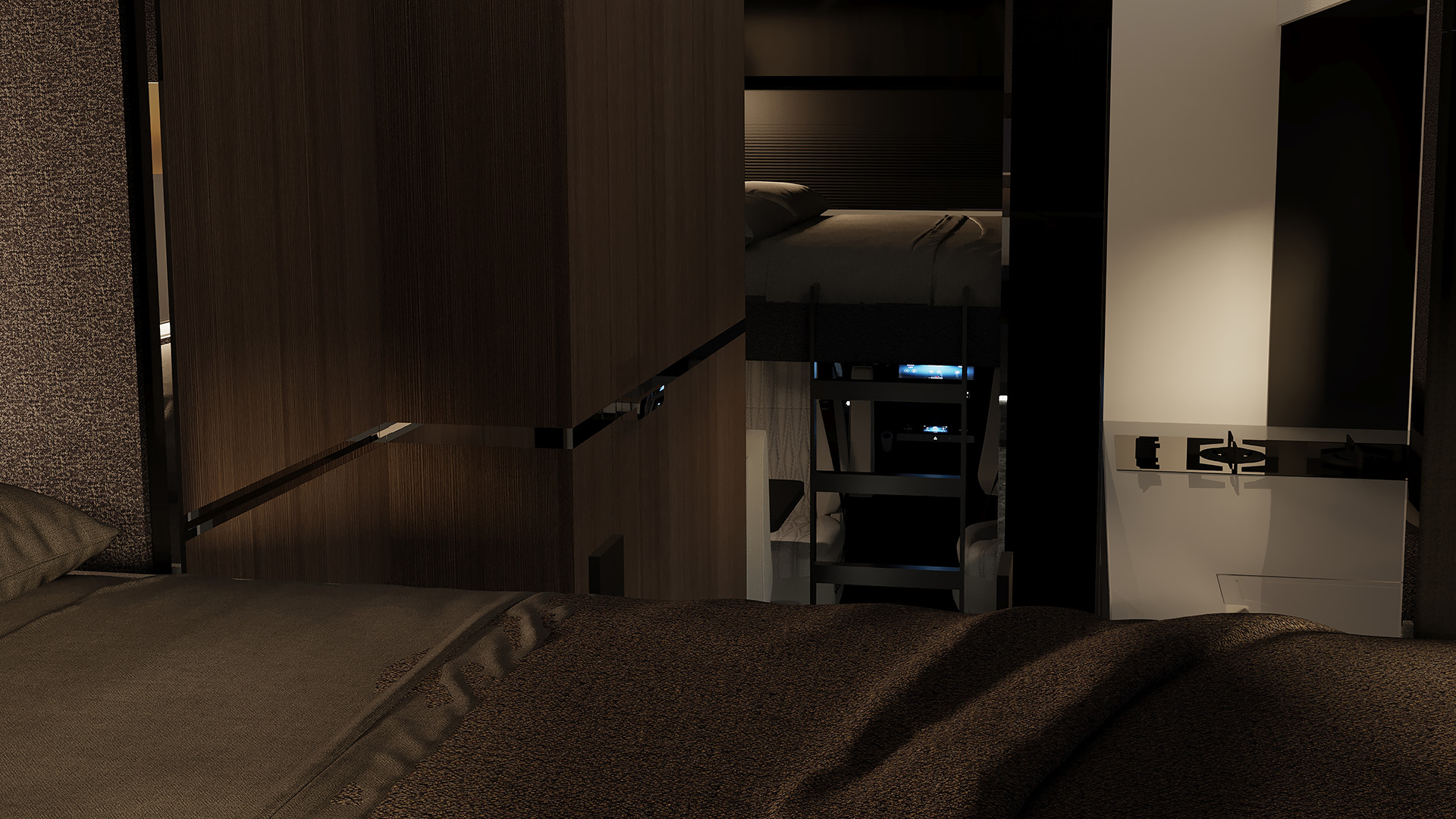

Two large drop-down beds make sleeping comfortable in 4Family. The bathroom and the kitchen remain accessible during the night.

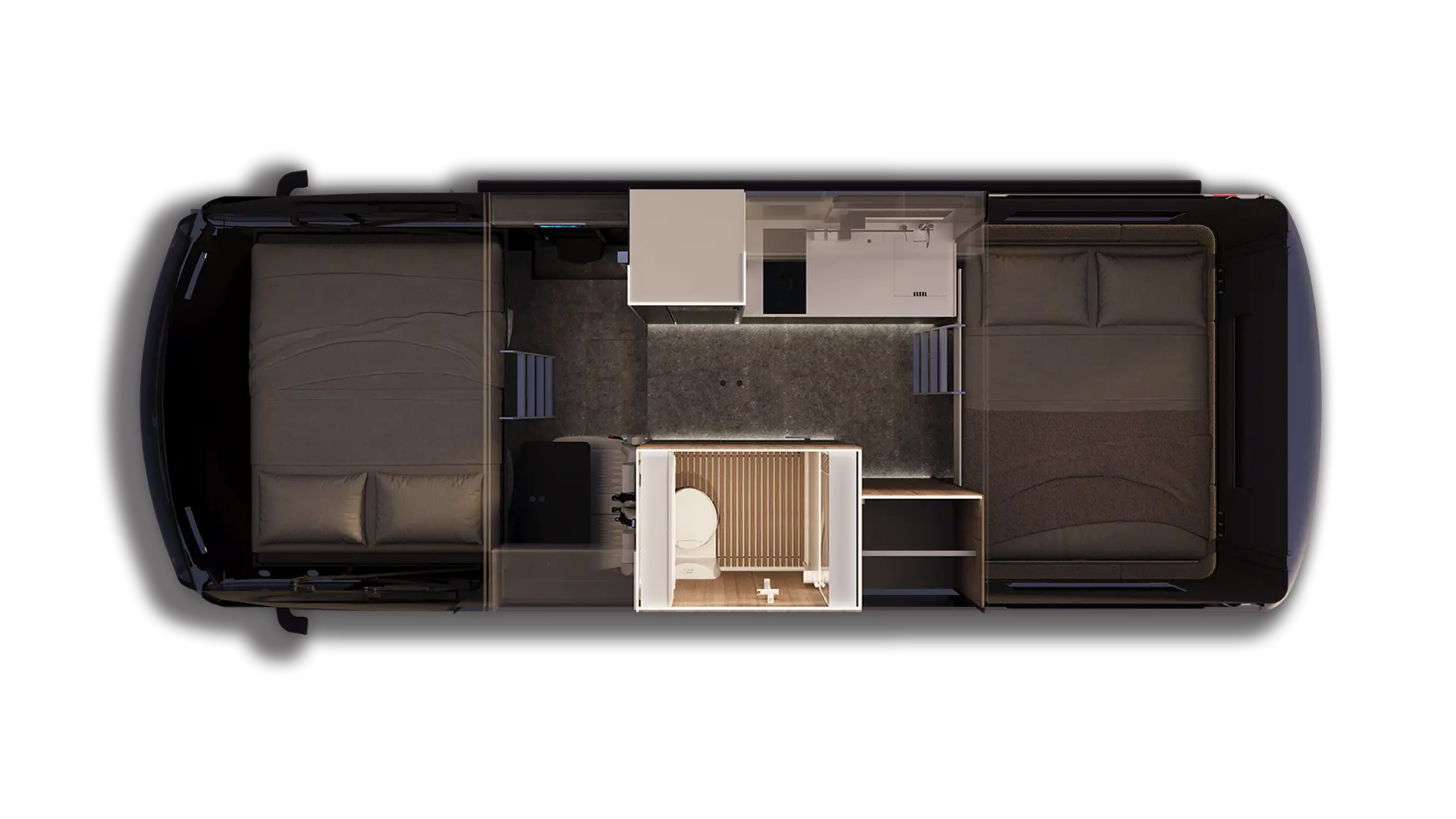

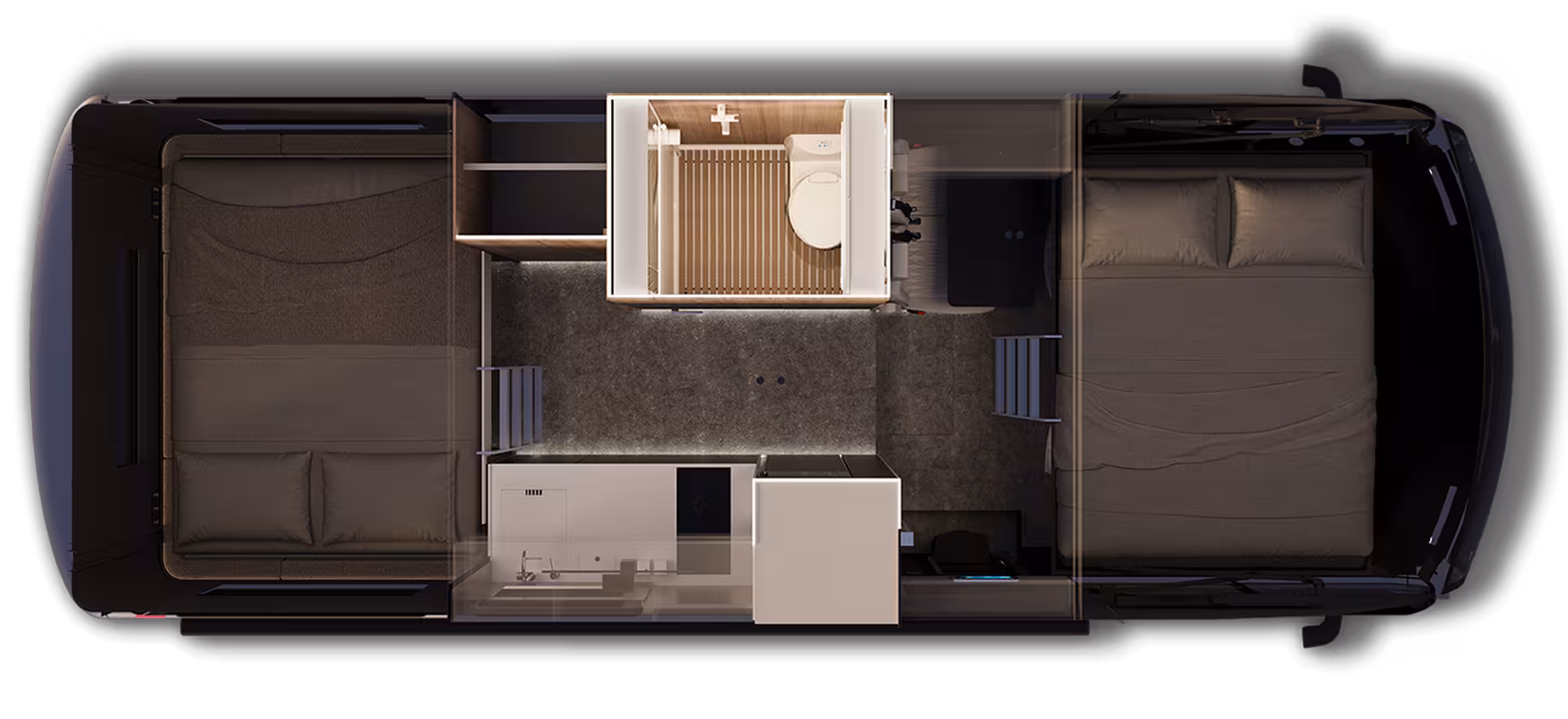

The night layout of 4Family, a family motorhome by HIP Campers.

The 4Family motorhome offers two separate living areas - a large one for the whole family at the rear, and a smaller one for the children at the front.

Day View

Two large drop-down beds make sleeping comfortable in 4Family. The bathroom and the kitchen remain accessible during the night.

Night View

Sign up for the reveal of HIP 4Family

Soon we will start sharing news and updates.

Sign up for the reveal of HIP 4Family

Soon we will start sharing news and updates.

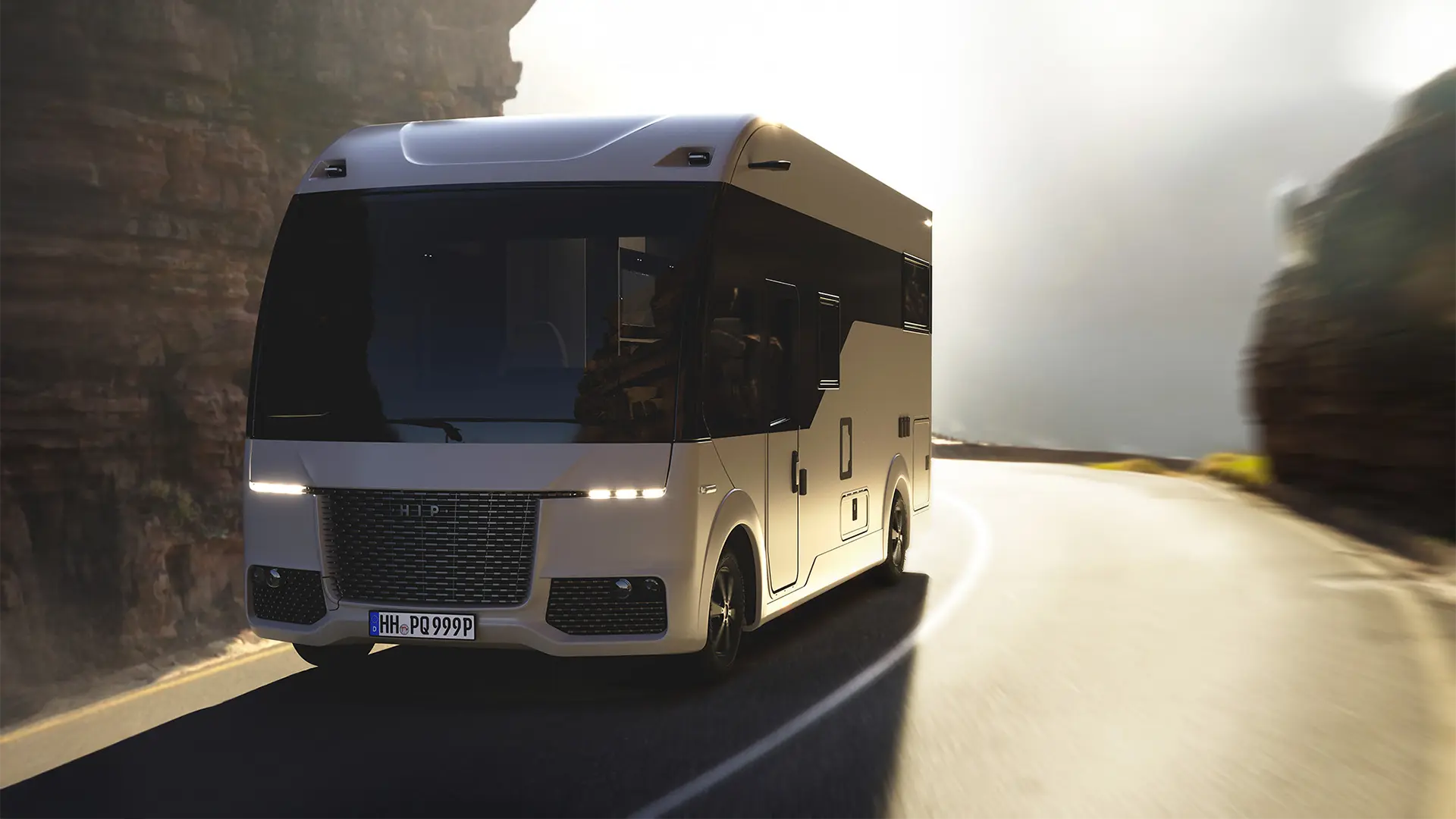

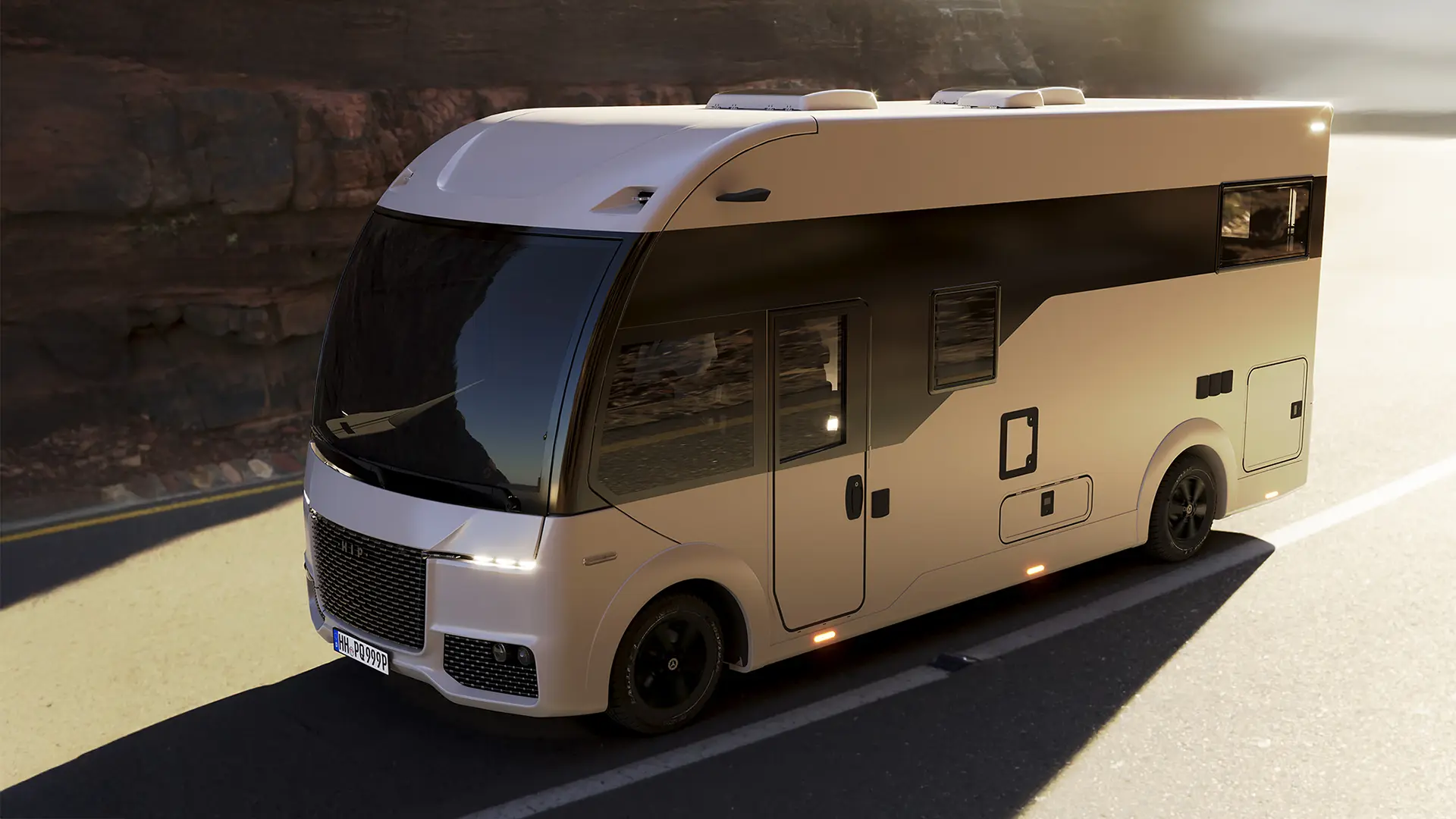

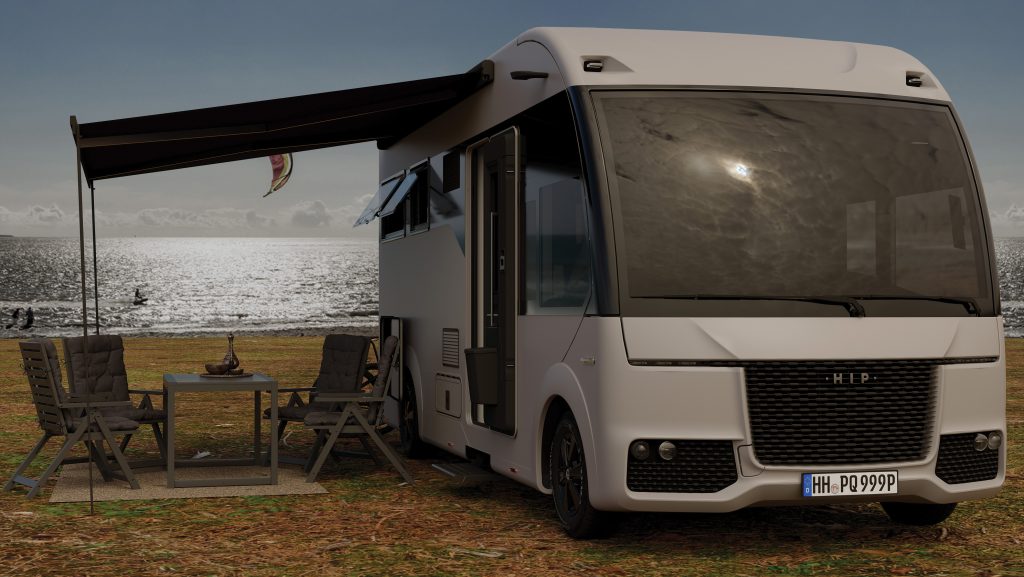

Exterior

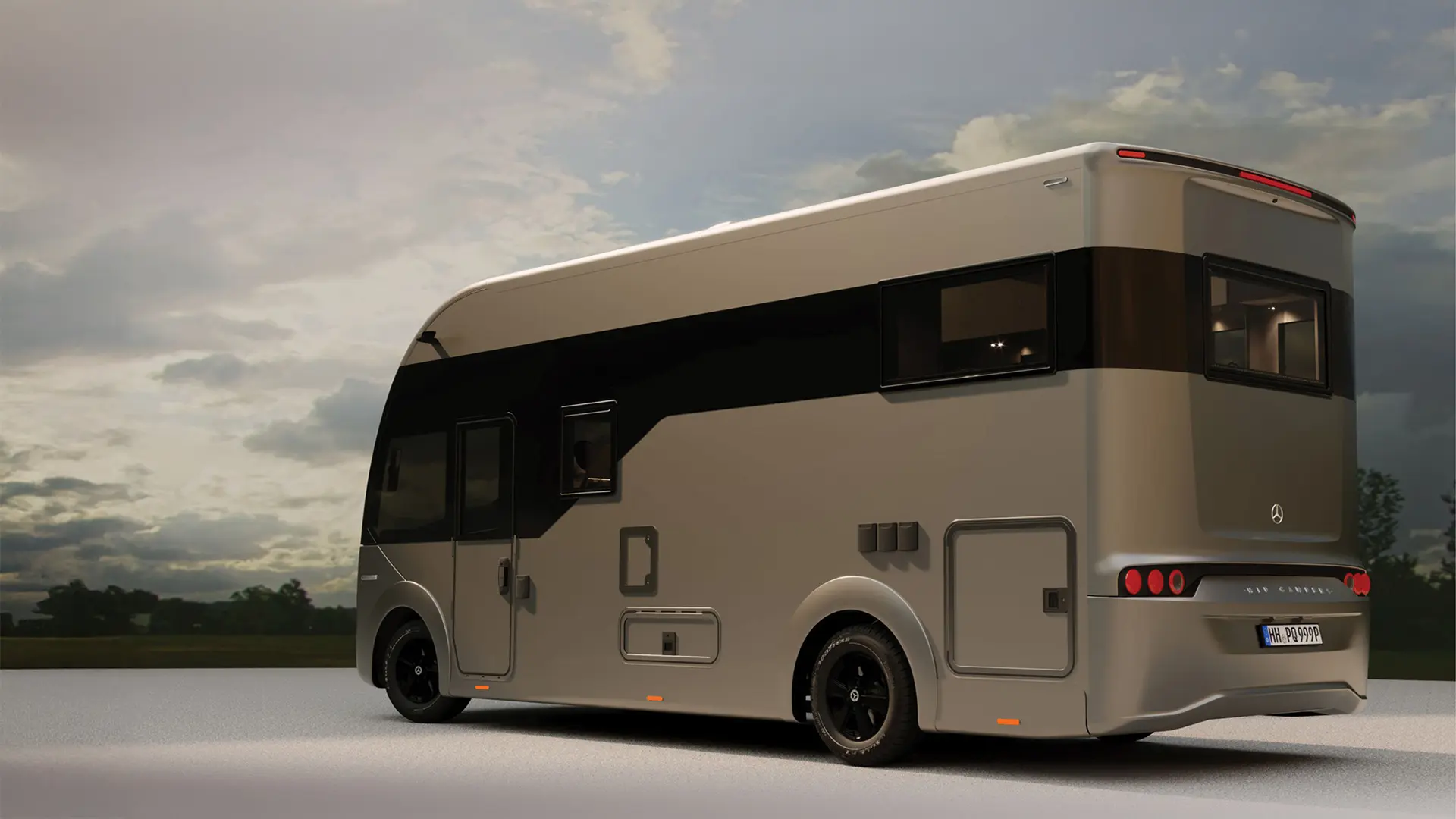

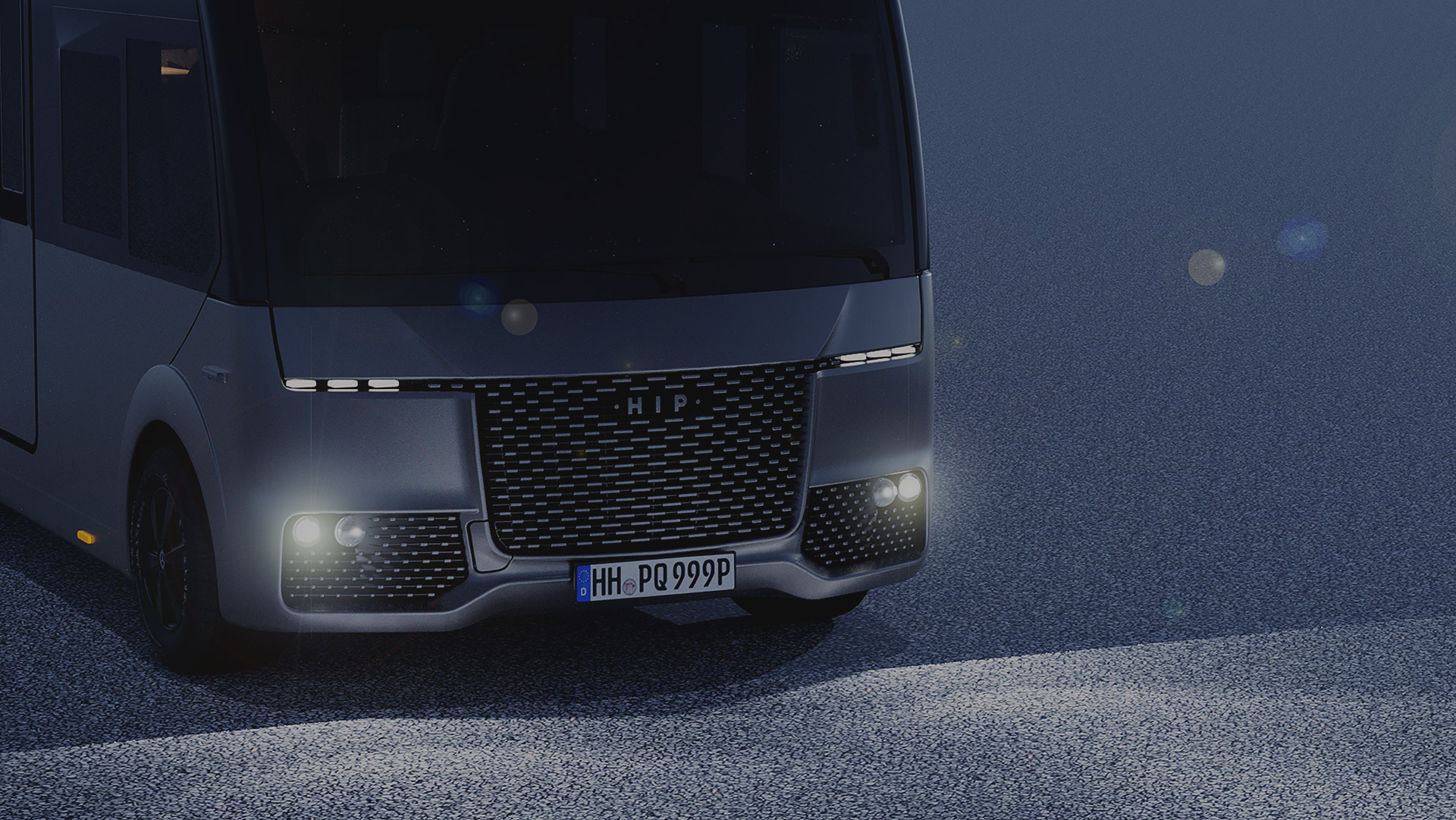

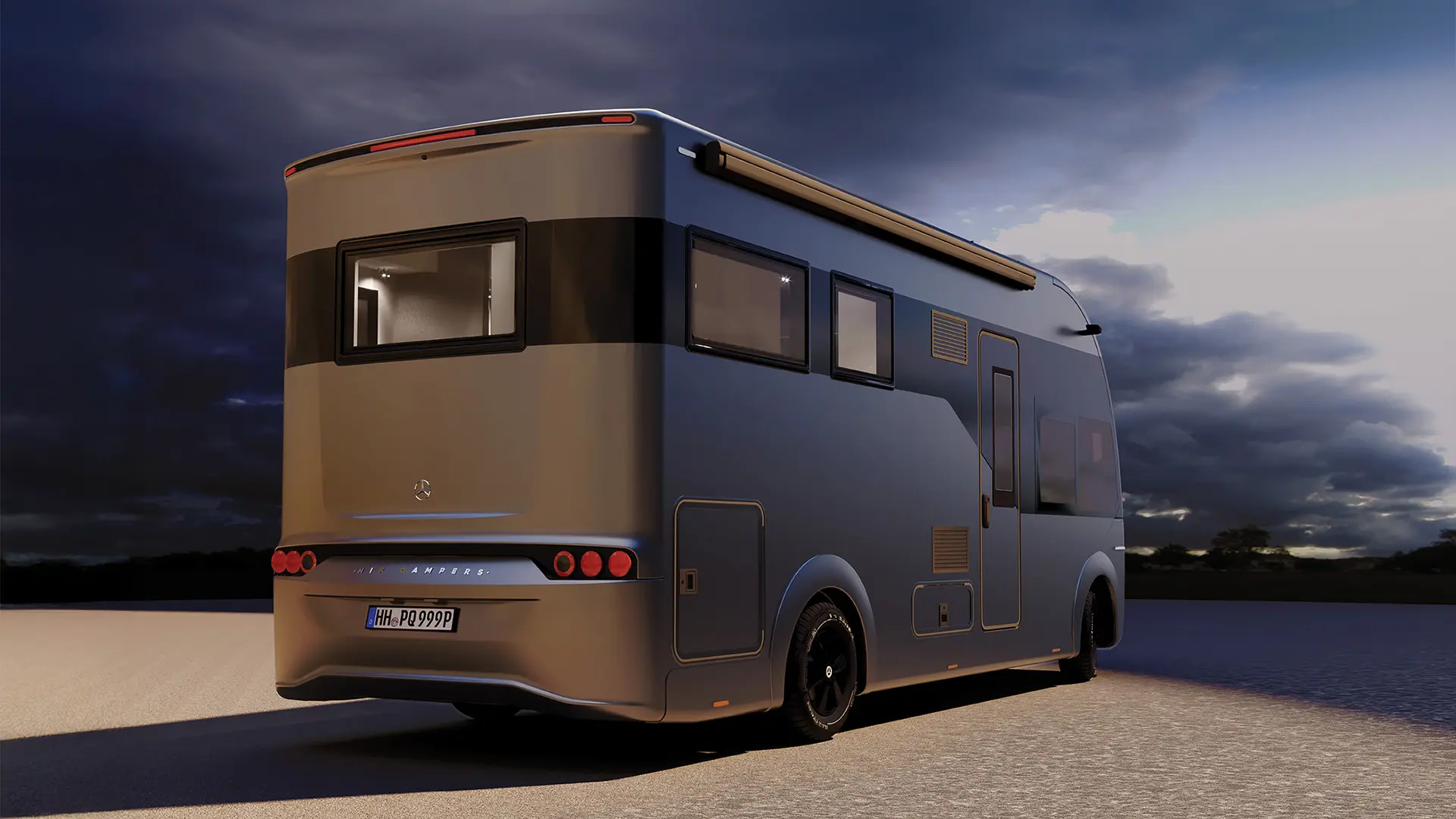

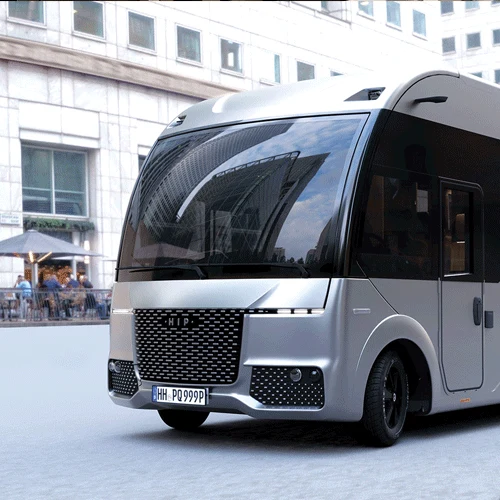

4Family is modern, beautiful, and aerodynamic. It comes with sideview cameras, a reversing camera and parking sensors, a double floor, and a large rear garage. The entrance door is 75cm wide. Other extras include outside LPG BBQ point, external shower with a drying rack, and many others.

(some exterior features not shown)

Exterior

4Family is modern, beautiful, and aerodynamic. It comes with sideview cameras, a reversing camera and parking sensors, a double floor, and a large rear garage. The entrance door is 75cm wide. Other extras include outside LPG BBQ point, external shower with a drying rack, and many others.

(some exterior features not shown)

Lounges

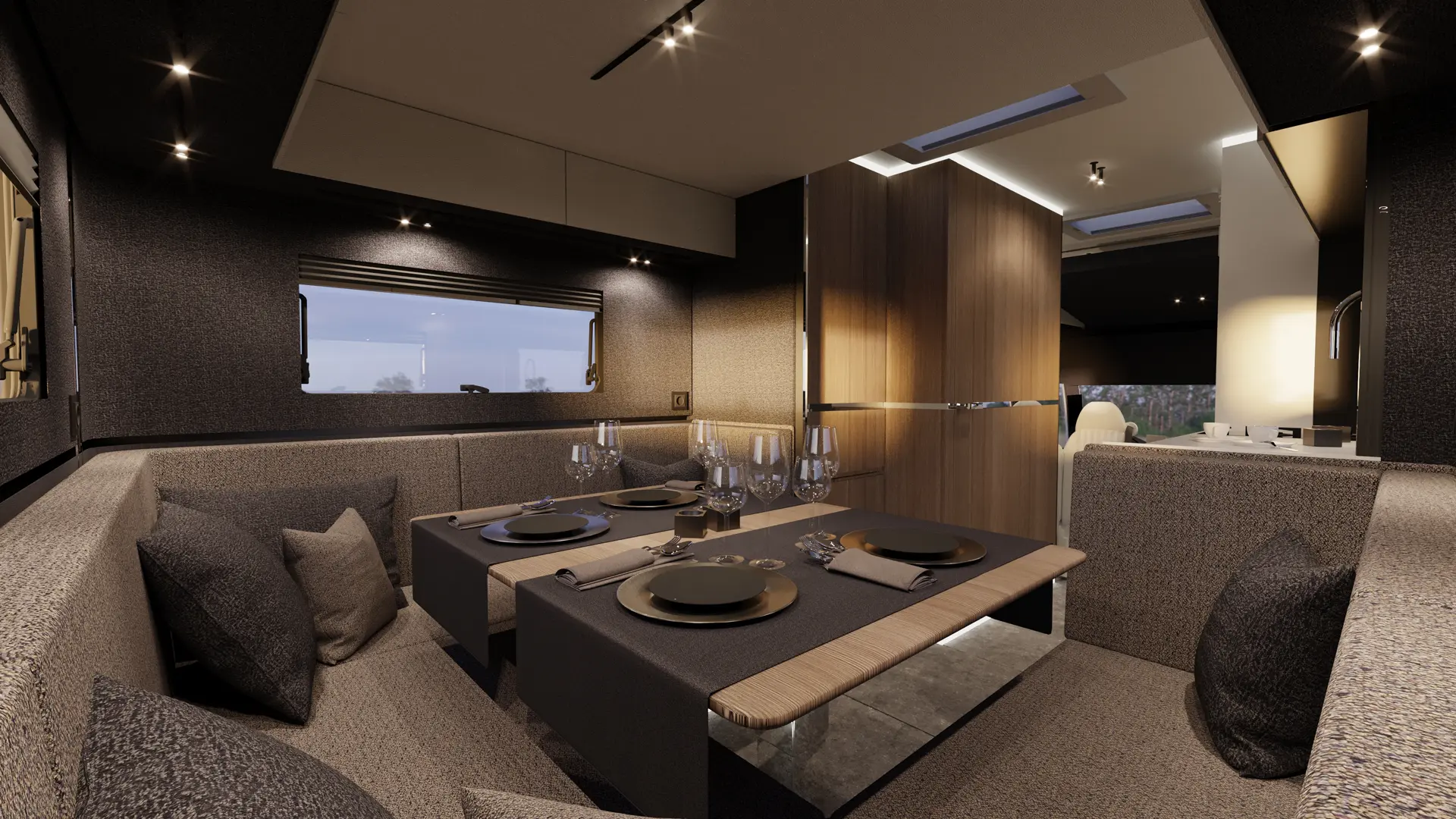

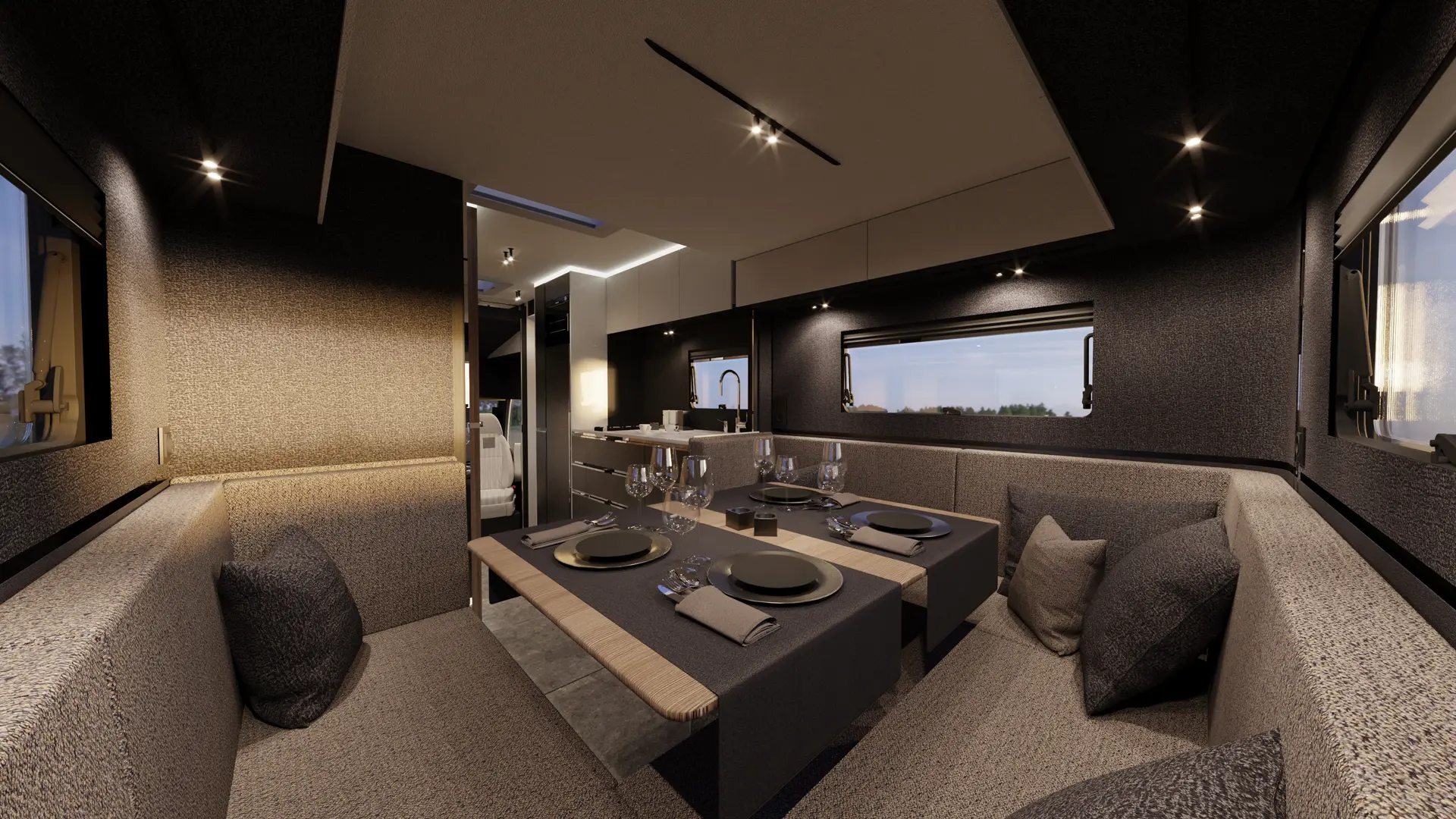

The large rear lounge comfortly accommodates up to 6 people and offers a 360° outside view.

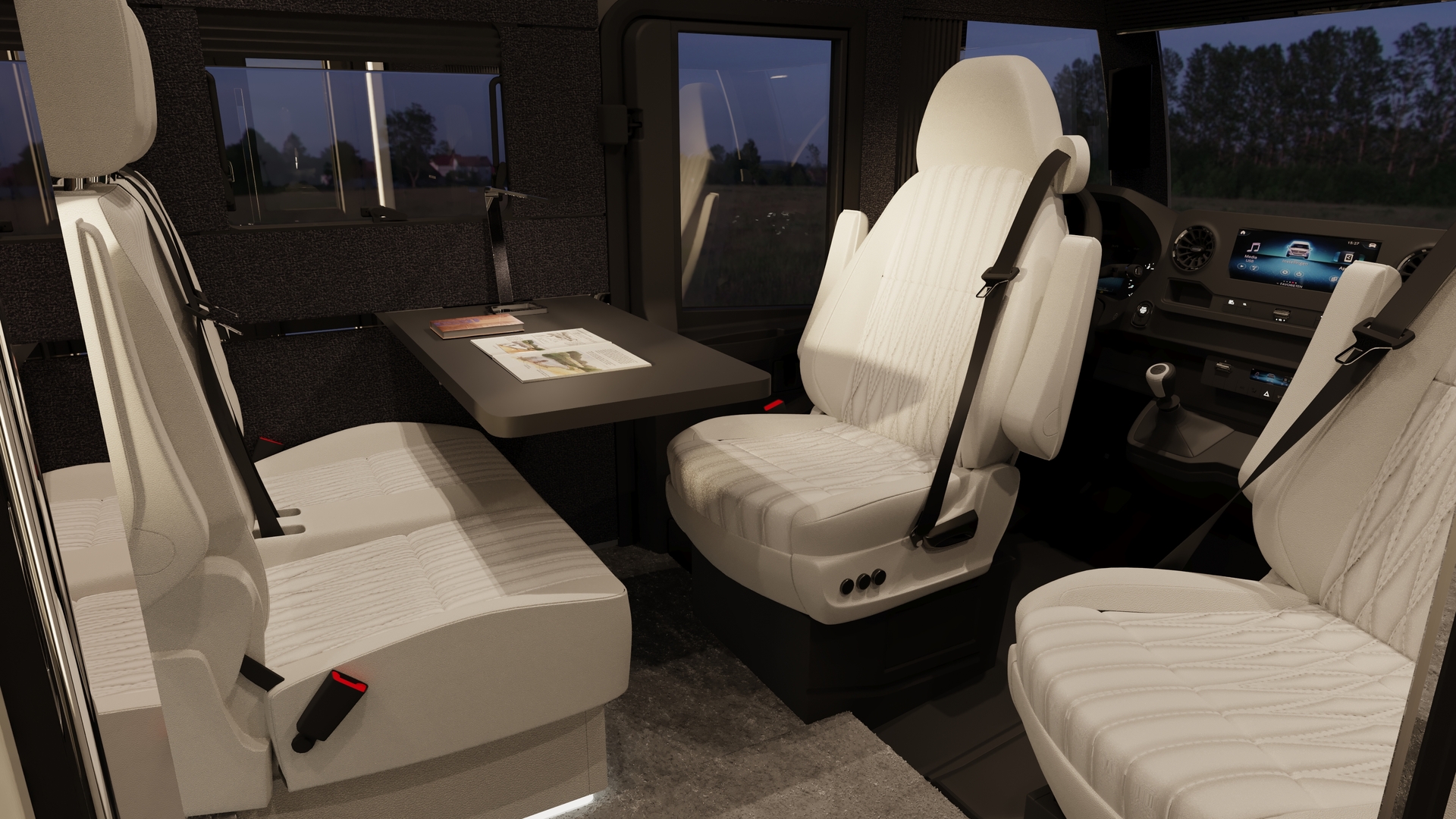

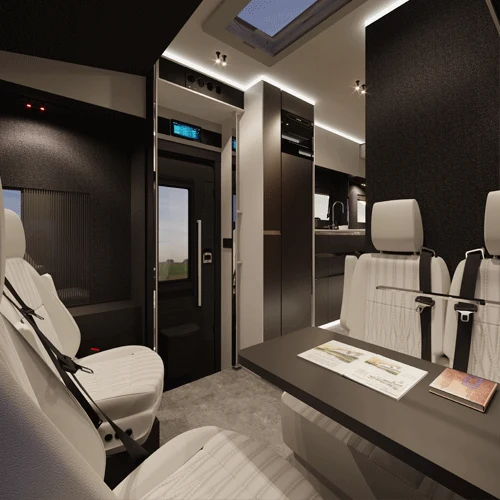

The front lounge features a bench seat with two seatbelts and a removable table. Together with the swiveling front seats, it can accommodate up to 4 kids.

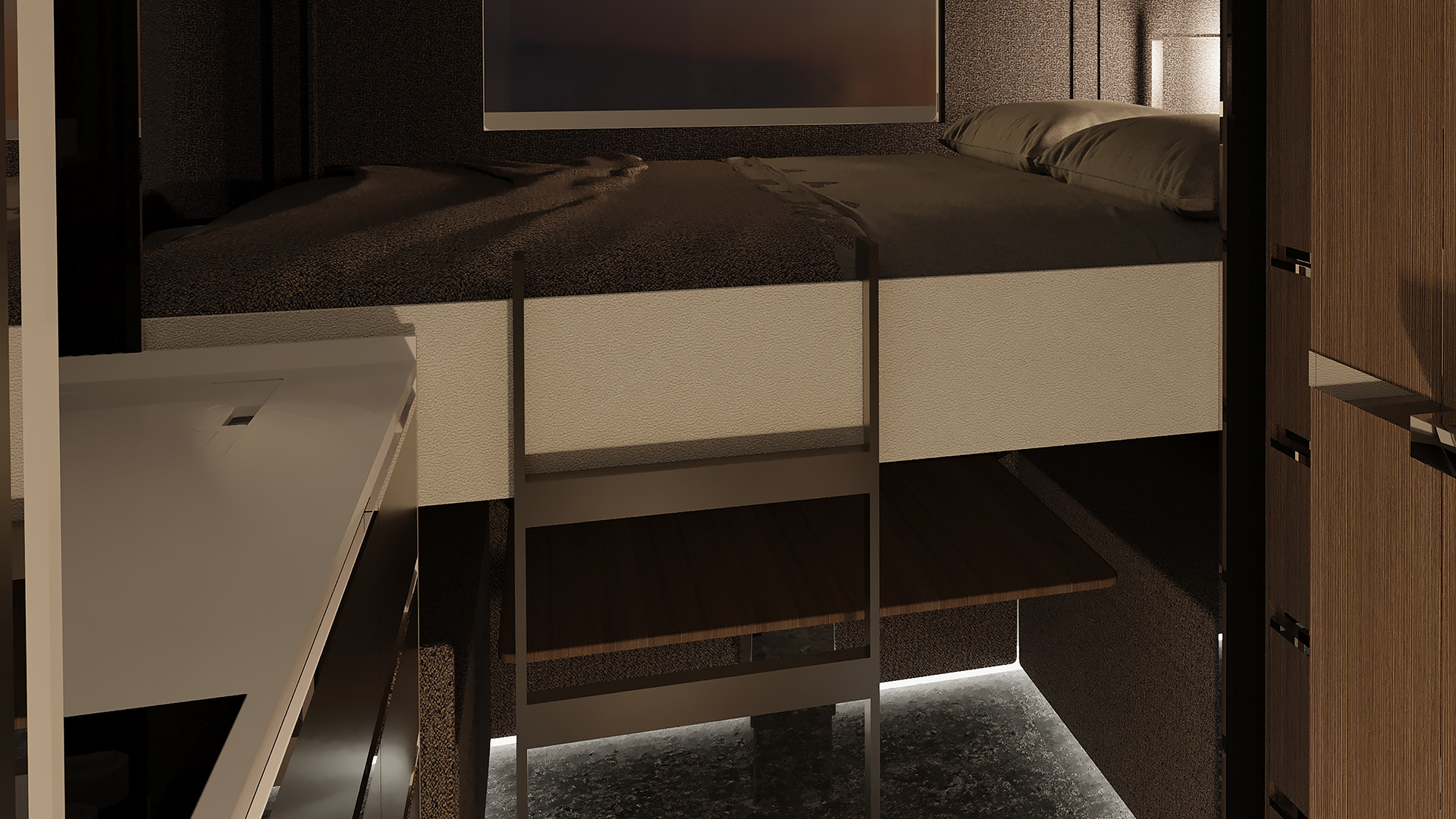

Both lounges feature drop-down beds.

Lounges

The large rear lounge comfortly accommodates up to 6 people and offers a 360° outside view.

The front lounge features a bench seat with two seatbelts and a removable table. Together with the swiveling front seats, it can accommodate up to 4 kids.

Both lounges feature drop-down beds.

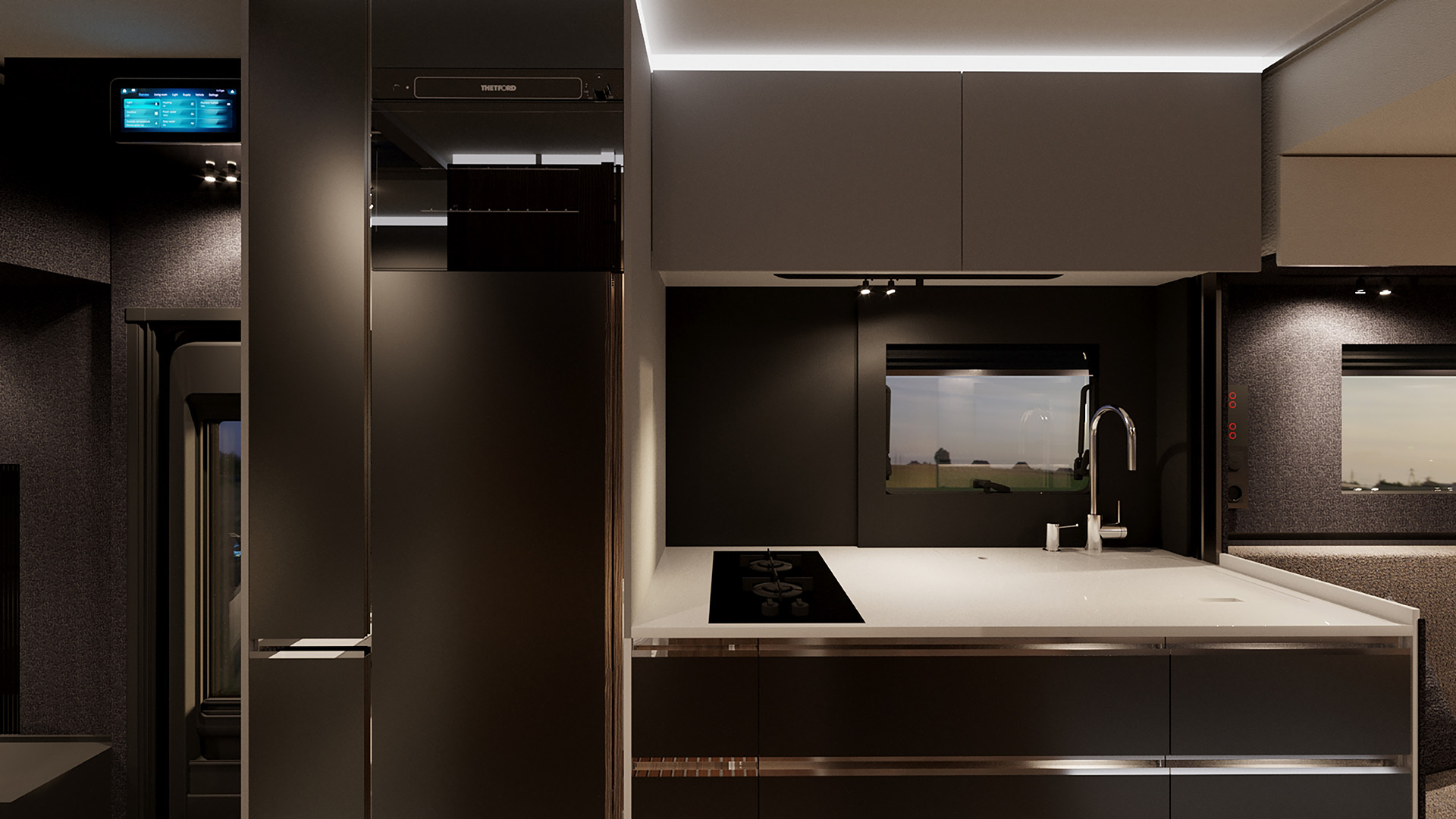

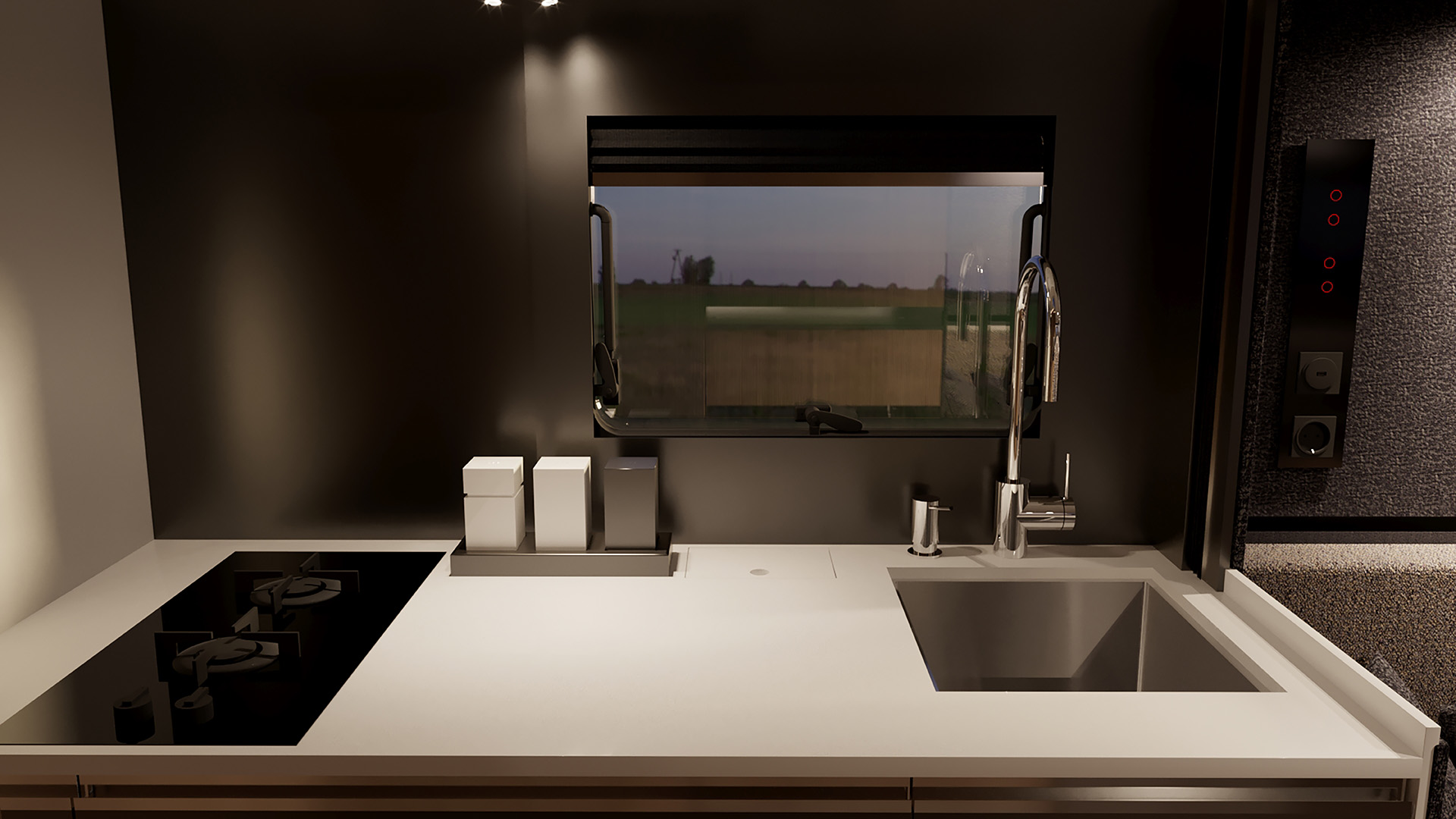

Kitchen

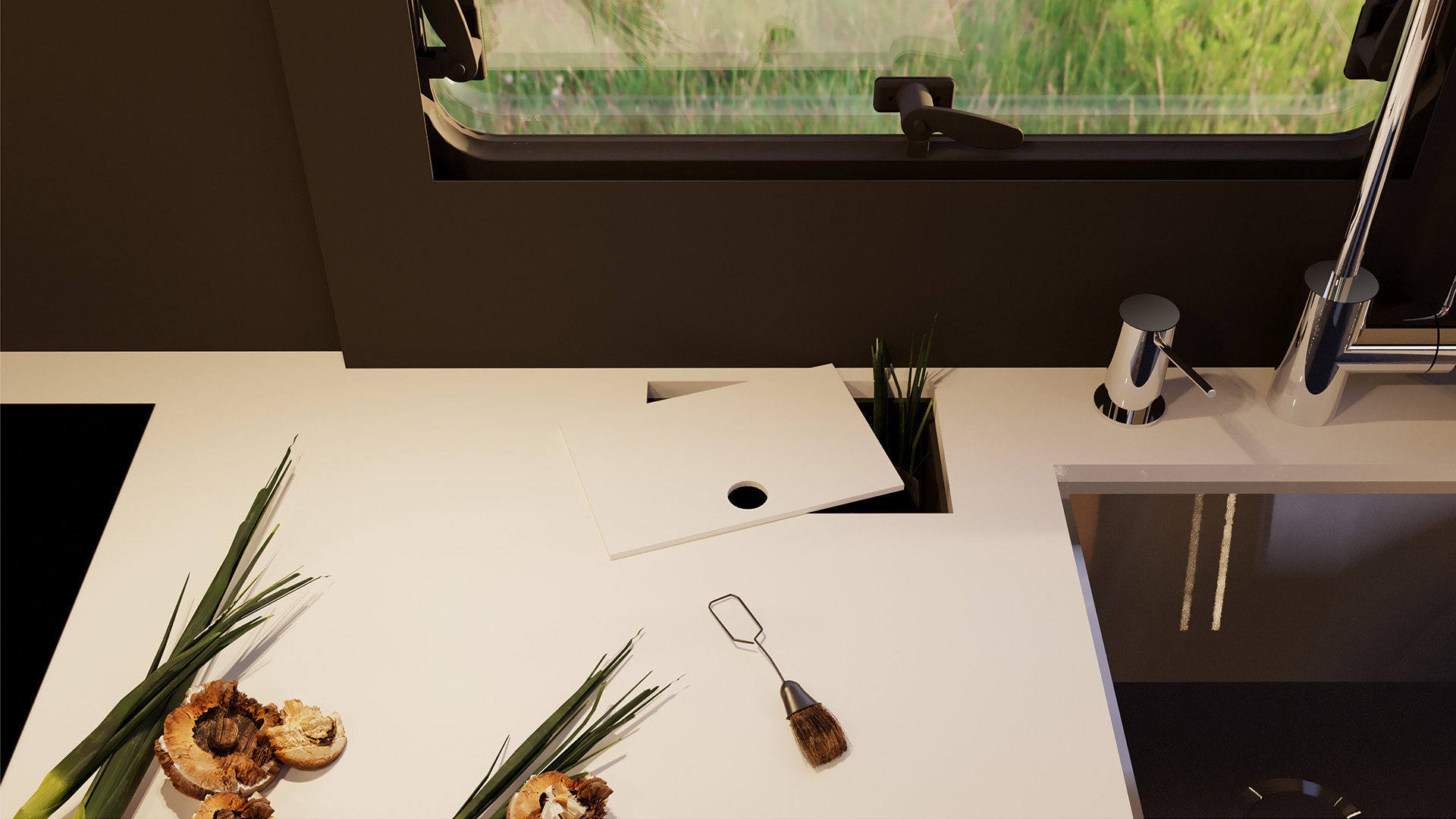

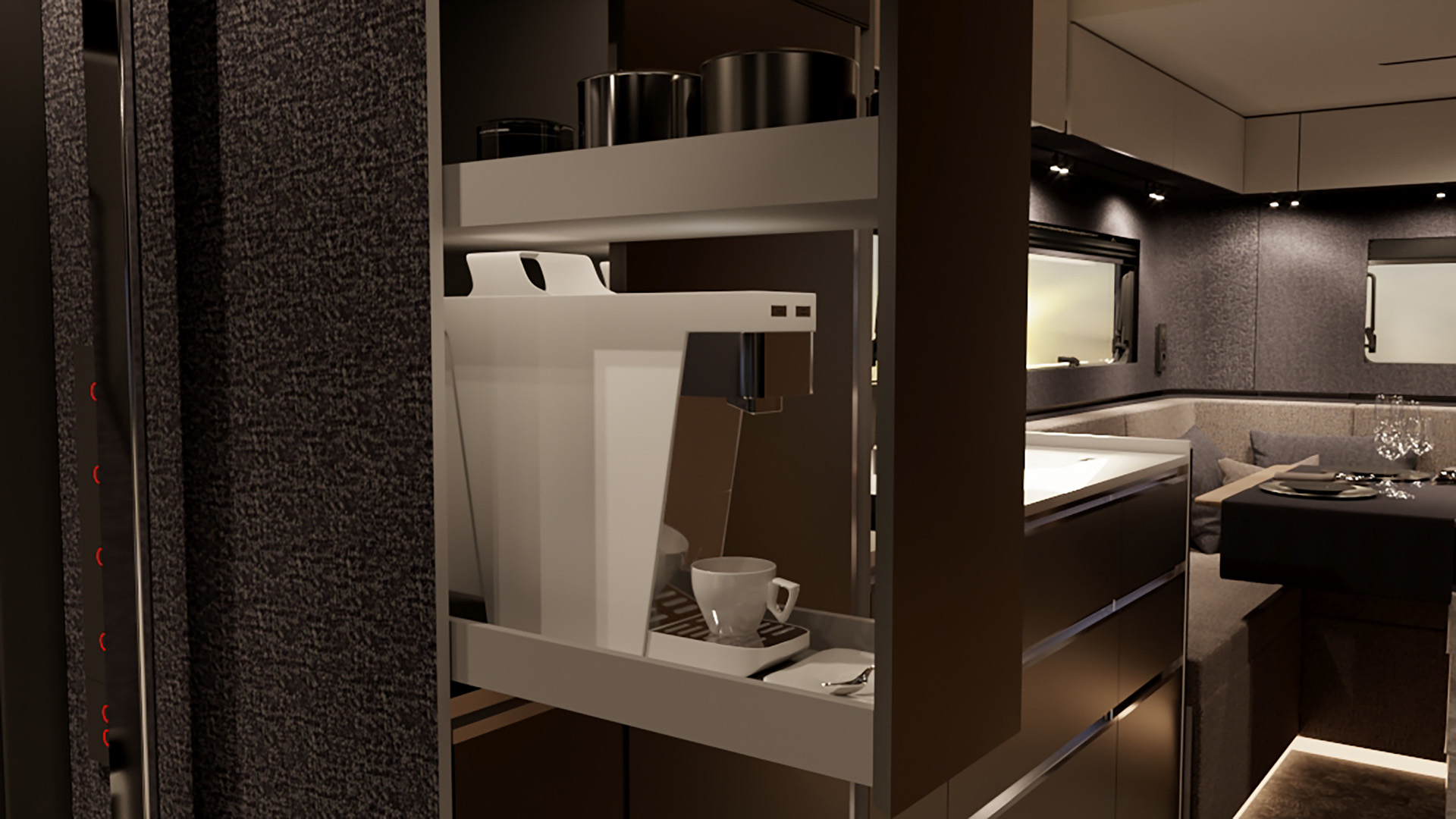

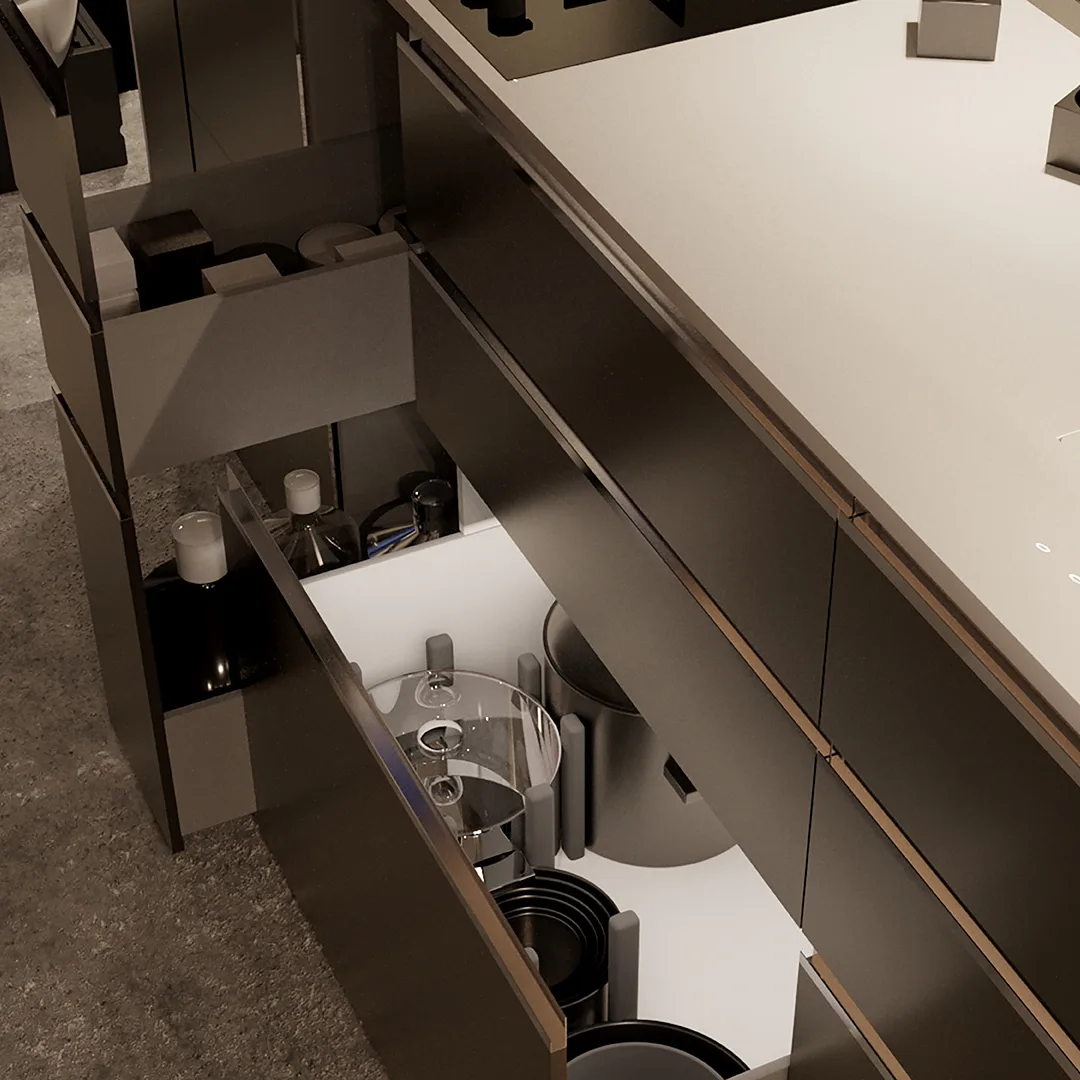

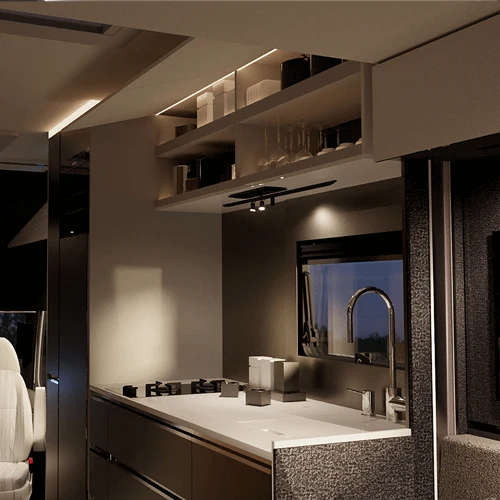

4Family offers the largest cooktop in a 7,2m motorhome (125x60cm) with integrated waste management, a domestic 34x40cm sink, a soap dispenser, a two burner hob, a 141L fridge, an oven and two (yes, two) pantries.

The kitchen is purposefully designed to be at the awning side of the camper. This allows the cook to be part of the social gathering outside and to communicate with the family outside.

Kitchen

4Family offers the largest cooktop in a 7,2m motorhome (125x60cm) with integrated waste management, a domestic 34x40cm sink, a soap dispenser, a two burner hob, a 141L fridge, an oven and two (yes, two) pantries.

The kitchen is purposefully designed to be at the awning side of the camper. This allows the cook to be part of the social gathering outside and to communicate with the family outside.

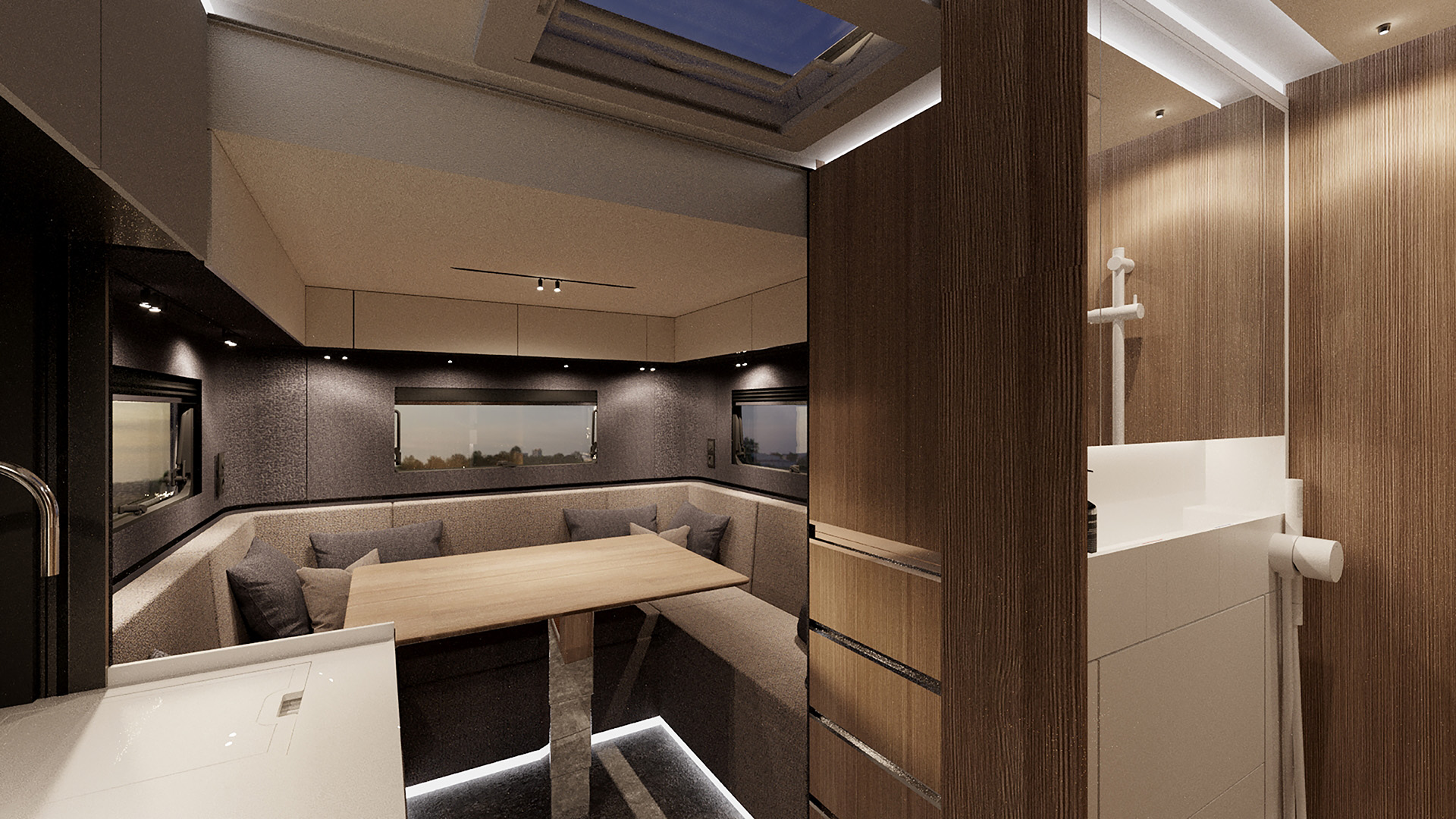

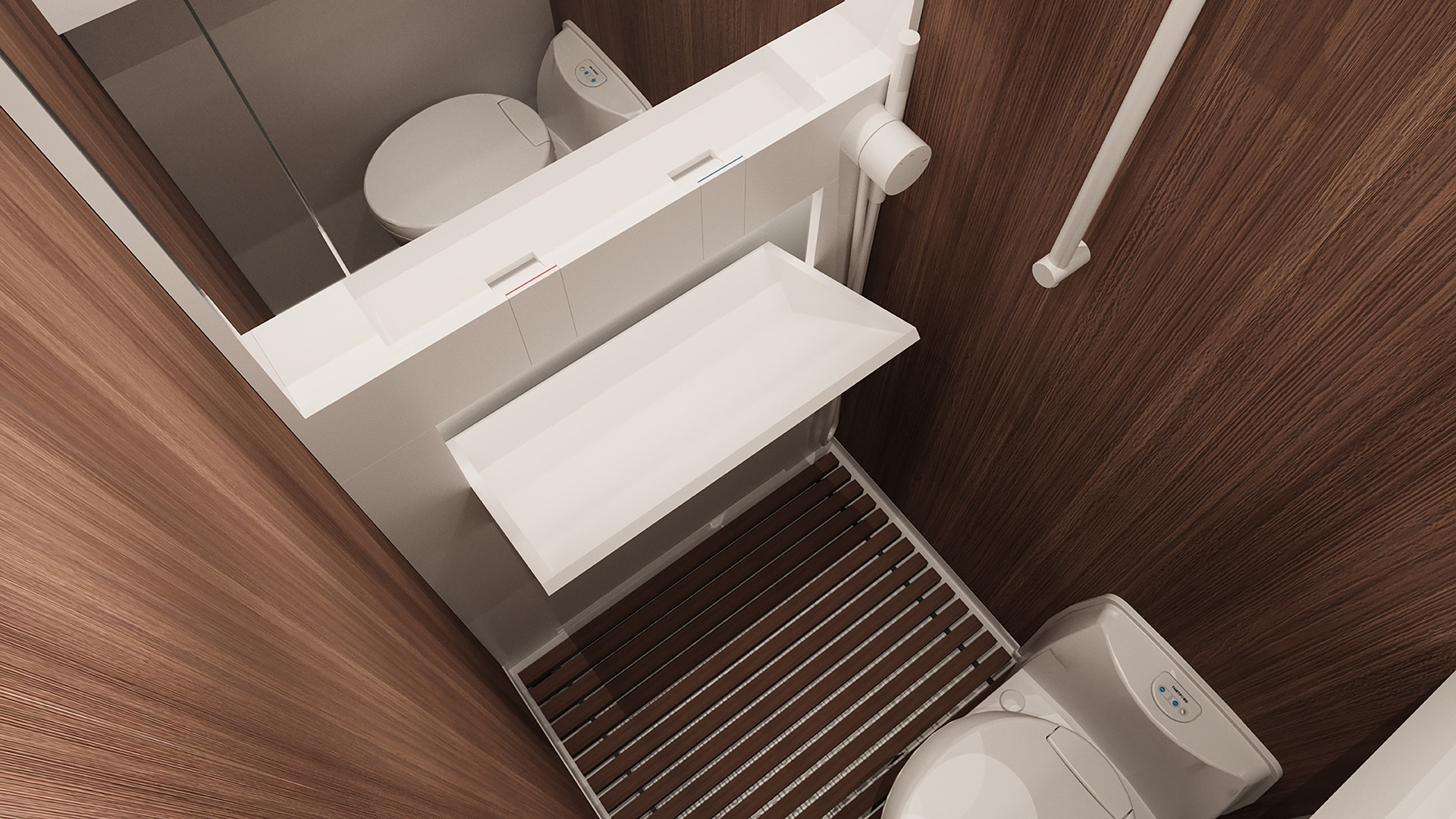

HIP 4Family Motorhome Bathroom with Sink Opened HIP 4Family Motorhome Bathroom with Sink Closed

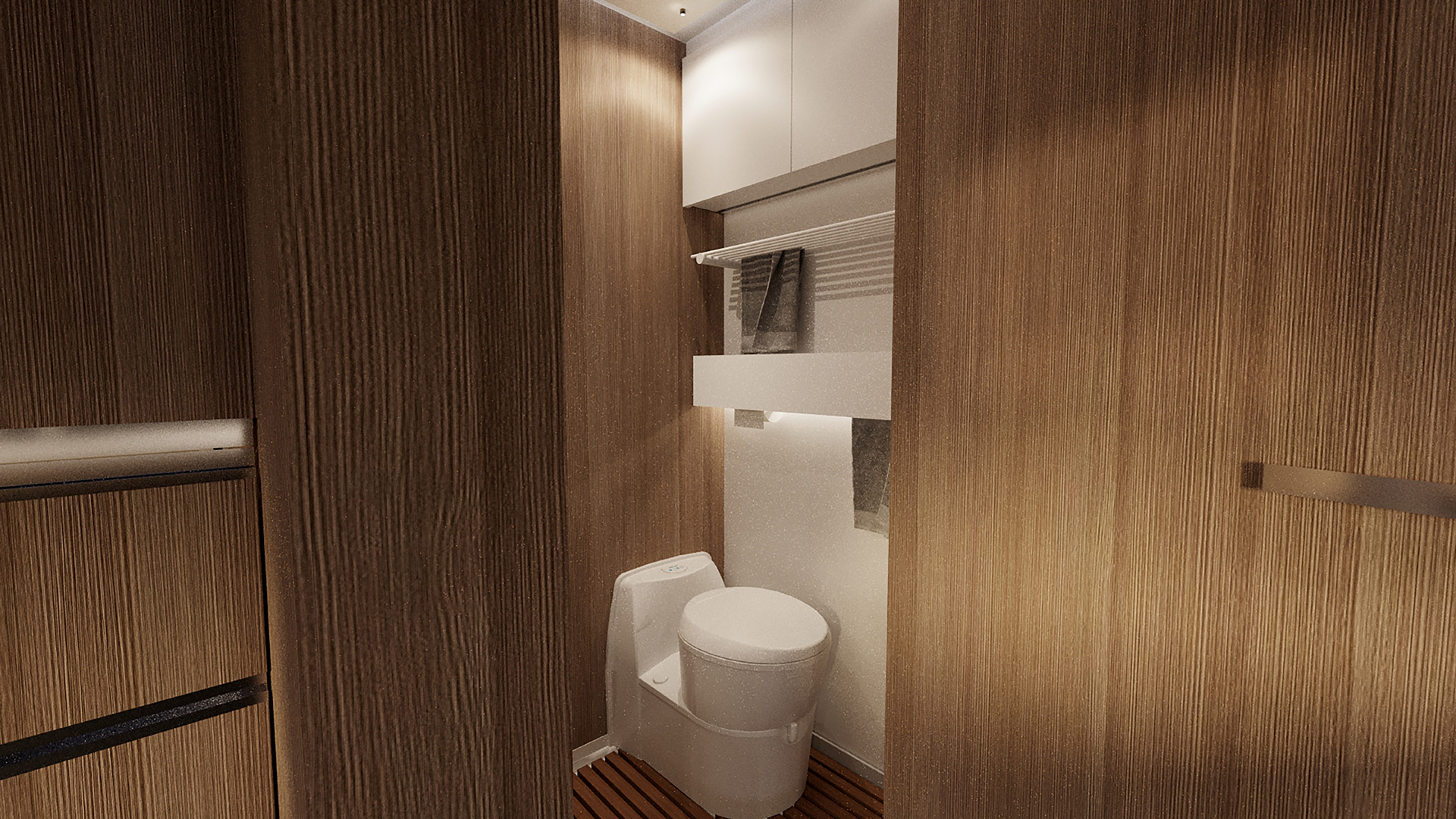

Bathroom

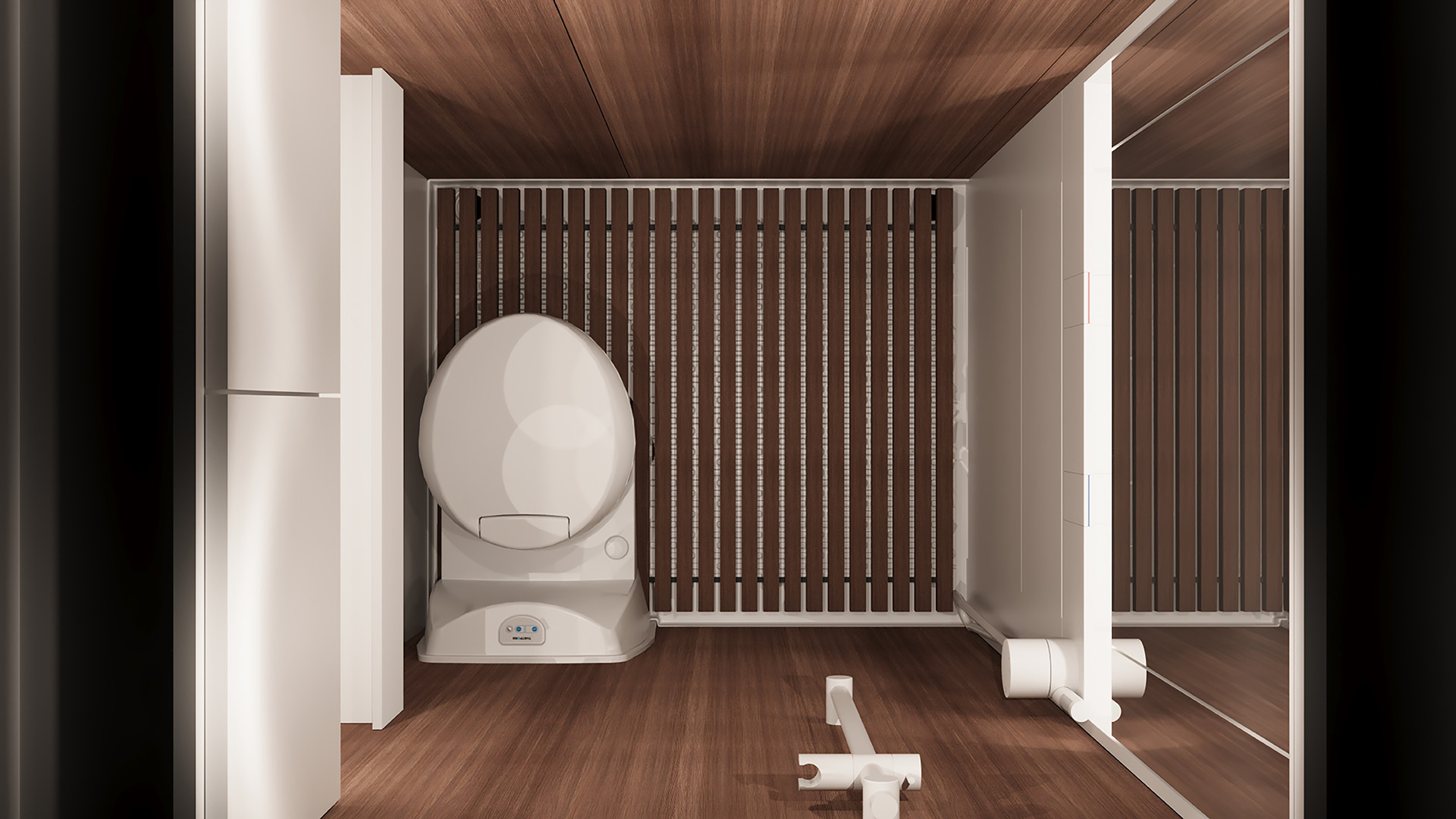

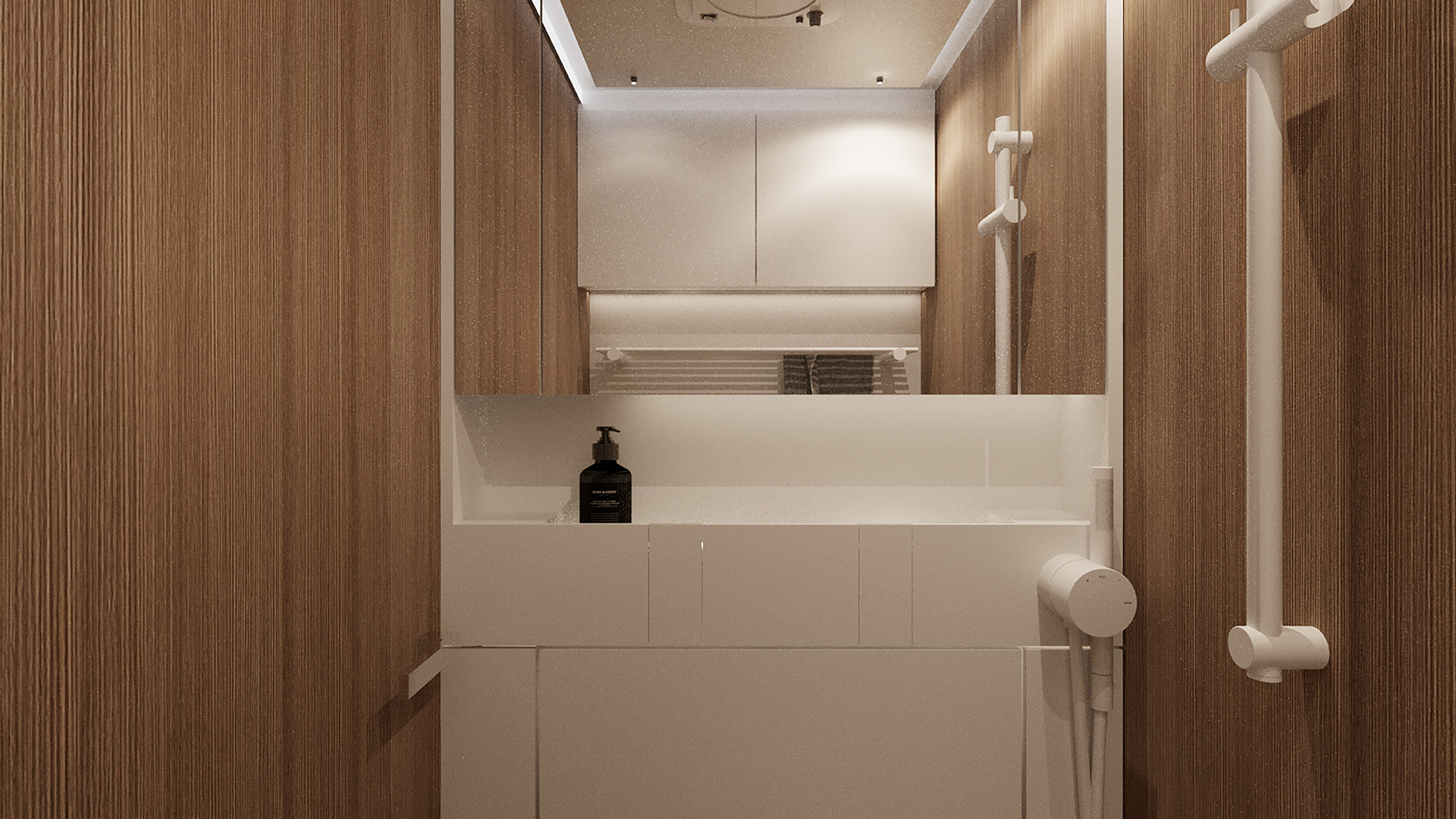

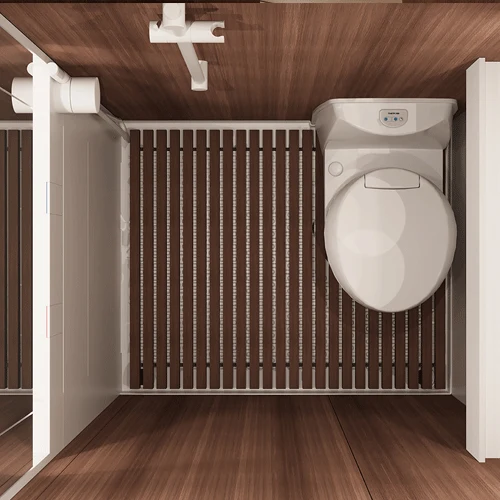

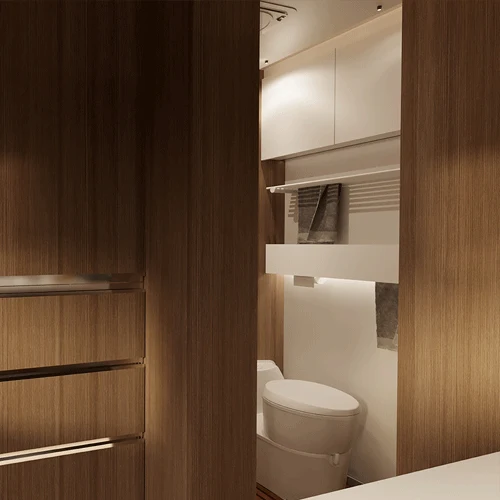

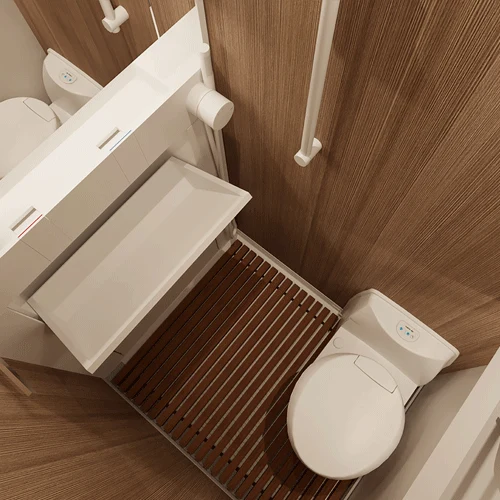

The bathroom in 4Family is another star of the motorhome. It measures a specious 120x85cm and features a modern design. The large foldable sink allows the room to be used as a home-size shower room. It also features a water-saving shower head, a cassette toilet, a drying rack and enough cabinets for personal care products.

Bathroom

The bathroom in 4Family is another star of the motorhome. It measures a specious 120x85cm and features a modern design. The large foldable sink allows the room to be used as a home-size shower room. It also features a water-saving shower head, a cassette toilet, a drying rack and enough cabinets for personal care products.
HIP 4Family Motorhome Bathroom with Sink Opened HIP 4Family Motorhome Bathroom with Sink Closed

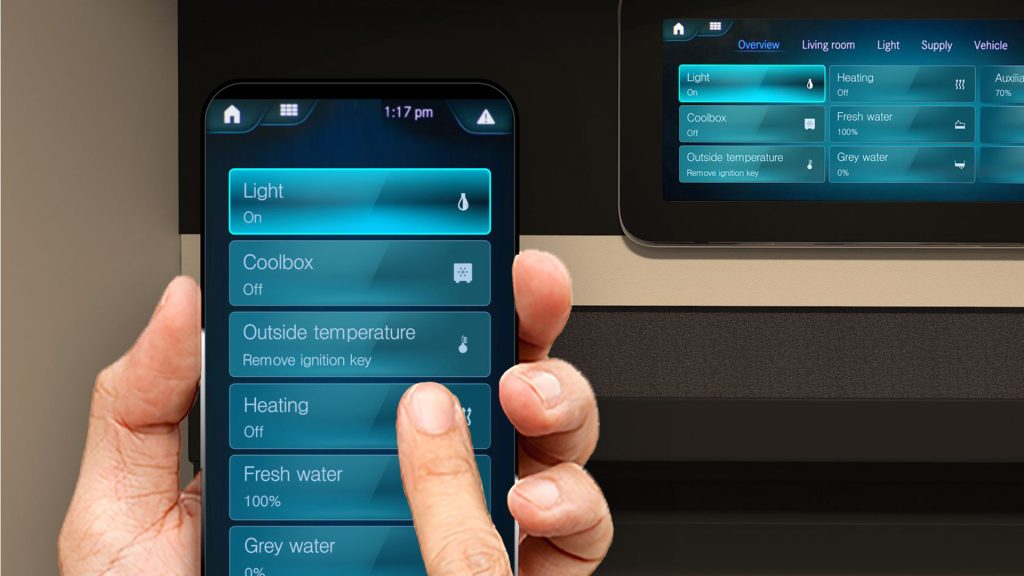

Smart Control

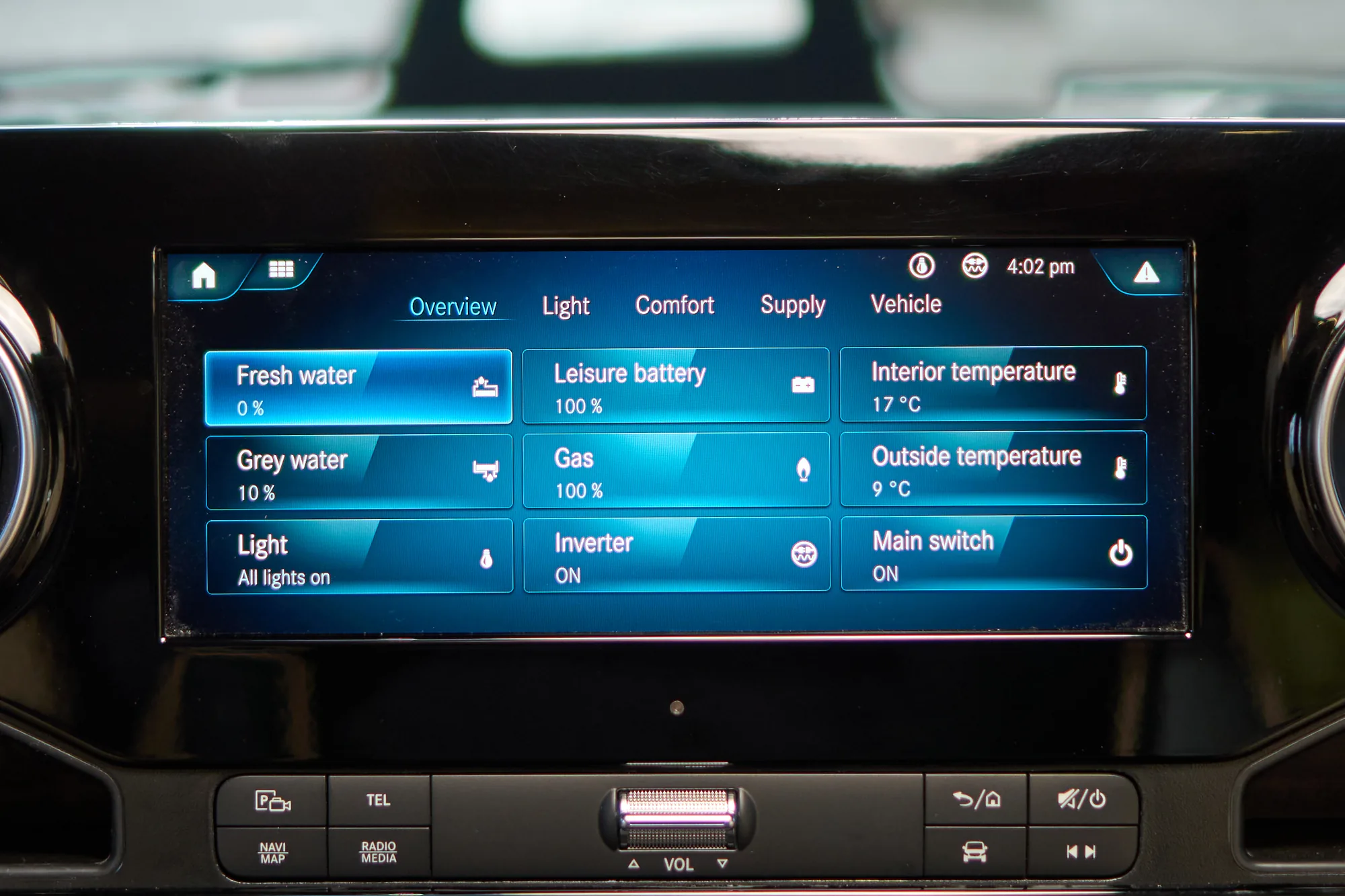

The 4Family Smart Control offers true “smart motorhome” experience by displaying the status of all systems in the motorhome (water, gas and batteries), and allowing you to control all supported electrical components, such as heater, AC, fridge, lights, water disposal, and others. The system will be designed to auto-handle certain problematic situations, for example when the water is about to freeze and no action is taken from a human.

Smart Control

The 4Family Smart Control offers true “smart motorhome” experience by displaying the status of all systems in the motorhome (water, gas and batteries), and allowing you to control all supported electrical components, such as heater, AC, fridge, lights, water disposal, and others. The system will be designed to auto-handle certain problematic situations, for example when the water is about to freeze and no action is taken from a human.

Sign up for the reveal of HIP 4Family

Soon we will start sharing news and updates.

Sign up for the reveal of HIP 4Family

Soon we will start sharing news and updates.

Summer Camping

HIP 4Family is equipped with a highly efficient 12V 8500BTU air conditioner, which is fully integrated into the living area (the AC doesn’t impact the motorhome height). When not connected to 220V, the AC is powered from 800W of solar power and up to 400Ah of LiFePO4 batteries.

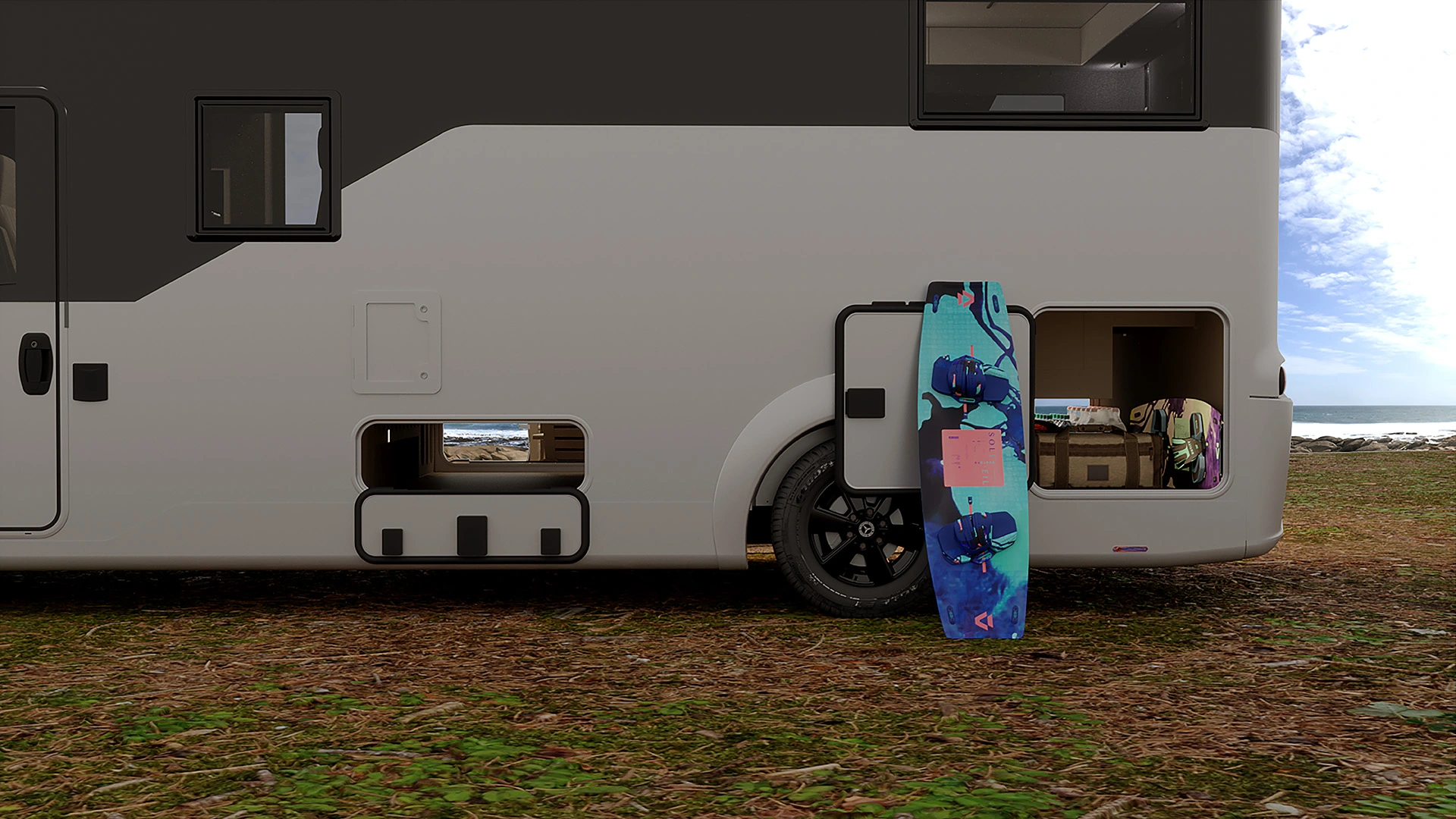

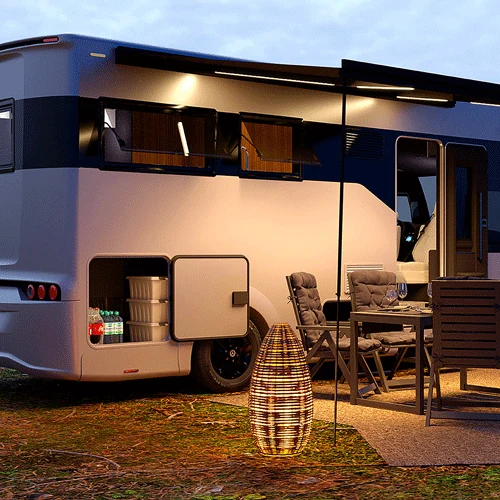

The 38cm double floor provides dedicated storage space for a table, chairs, BBQ, and large sporting equipment (such as kites and boards). The rear panel is designed for a 4-bike carrier.

For quality time outside, 4Family offers a 4.5m awning, an outside LPG BBQ point, a 40” movie experience, an external shower, a drying rack, and a power outlet.

The large 140L fridge will keep food fresh and drinks cold.

All windows and roof vents are equipped with mosquito nets and darkening blinds.

The rear overhang of the motorhome is designed to allow embarking ferries.

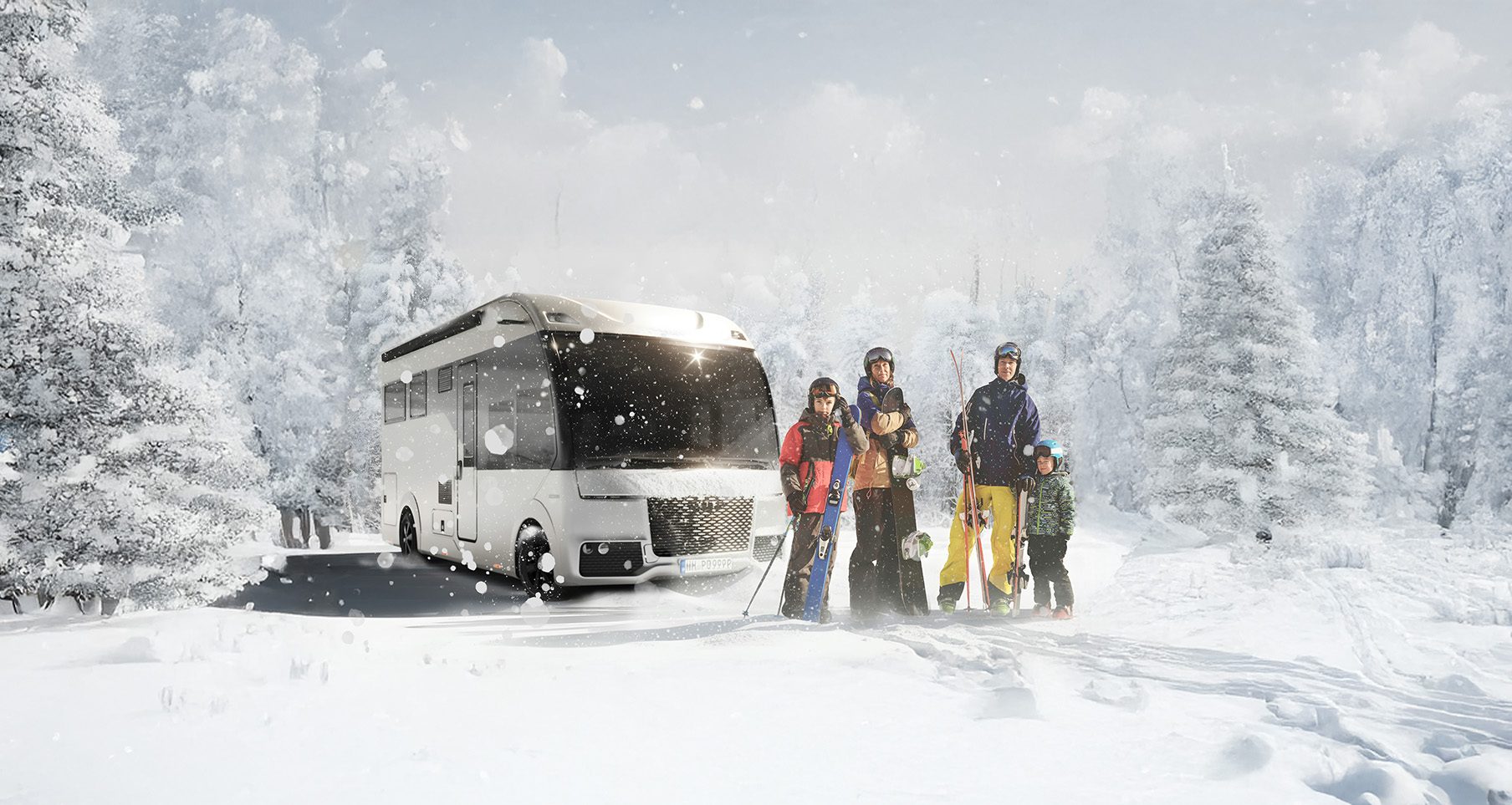

Winter Camping

4Family comes with an efficient heater & hot water combo, which is powered by a 58L undermount LPG gas tank.

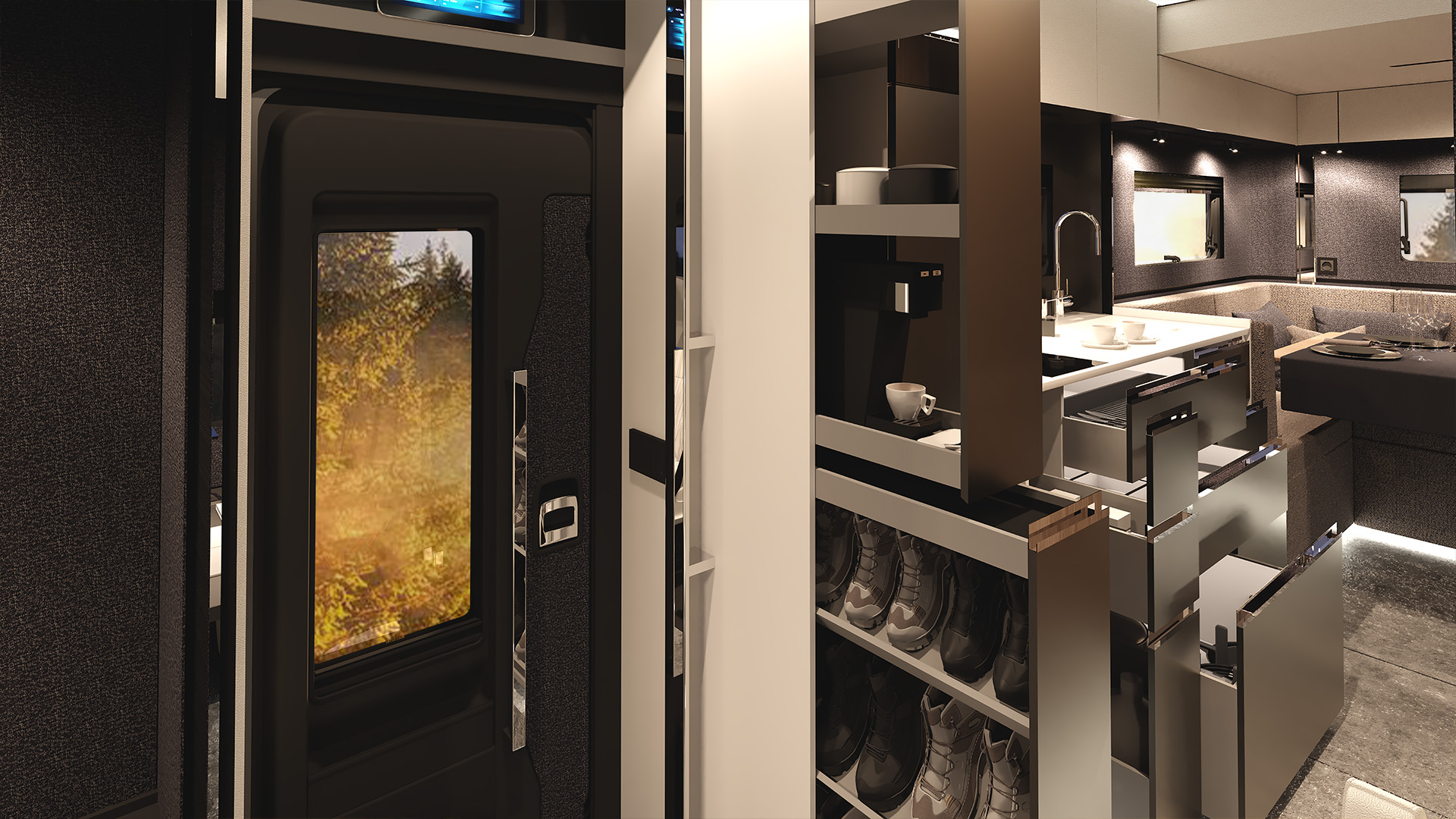

A dedicated “shoe area” allows wet/dirty shoes to be taken off and stored away while the door is closed – a smart solution for keeping the heat inside the camper.

The 38cm double floor offers enough space for the skis, snowboards, boots, and helmets for the entire family. It can also accommodate a sleigh, a table, chairs, and a BBQ. The double floor is heated, which prevents the water tanks from freezing.

The large bathroom, together with the water saving showerhead and the 150L clean water supply (120L grey tank) allow the whole family to take a hot shower each day. Wet clothes can be dried overnight on a special hanger in the bathroom of the motorhome.

For cozy family nights, 4Family offers enough space for table games, plus a 40” TV/movie experience.

Summer Camping

HIP 4Family is equipped with a highly efficient 12V 8500BTU air conditioner, which is fully integrated into the living area (the AC doesn’t impact the motorhome height). When not connected to 220V, the AC is powered from 800W of solar power and up to 400Ah of LiFePO4 batteries.

The 38cm double floor provides dedicated storage space for a table, chairs, BBQ, and large sporting equipment (such as kites and boards). The rear panel is designed for a 4-bike carrier.

For quality time outside, 4Family offers a 4.5m awning, an outside LPG BBQ point, a 40” movie experience, an external shower, a drying rack, and a power outlet.

The large 140L fridge will keep food fresh and drinks cold.

All windows and roof vents are equipped with mosquito nets and darkening blinds.

The rear overhang of the motorhome is designed to allow embarking ferries.

Winter Camping

4Family comes with an efficient heater & hot water combo, which is powered by a 58L undermount LPG gas tank.

A dedicated “shoe area” allows wet/dirty shoes to be taken off and stored away while the door is closed – a smart solution for keeping the heat inside the camper.

The 38cm double floor offers enough space for the skis, snowboards, boots, and helmets for the entire family. It can also accommodate a sleigh, a table, chairs, and a BBQ. The double floor is heated, which prevents the water tanks from freezing.

The large bathroom, together with the water saving showerhead and the 150L clean water supply (120L grey tank) allow the whole family to take a hot shower each day. Wet clothes can be dried overnight on a special hanger in the bathroom of the motorhome.

For cozy family nights, 4Family offers enough space for table games, plus a 40” TV/movie experience.

Features and Specifications

Vehicle Safety and Features

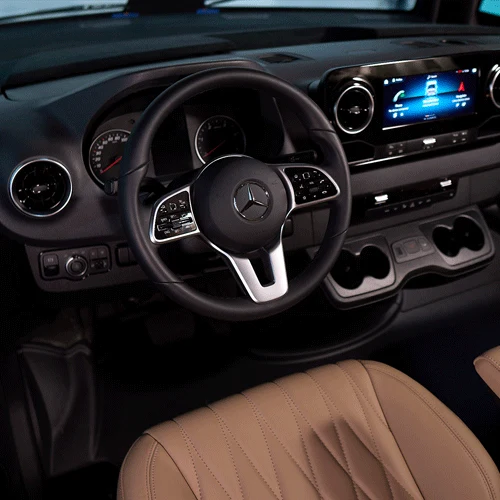

  • Mercedes-Benz 170 HP Diesel Euro VI
  • Front-wheel drive
  • 9G-TRONIC automatic transmission
  • 92 L fuel tank
  • Four seatbelts (all in the front of the motorhome), ISOFIX
  • Driver and passenger airbags
  • Full exterior LED lightning (daytime, high/low beam, side indicators, fog, tail lights, etc.)
  • Sideview cameras, reversing camera and parking sensors

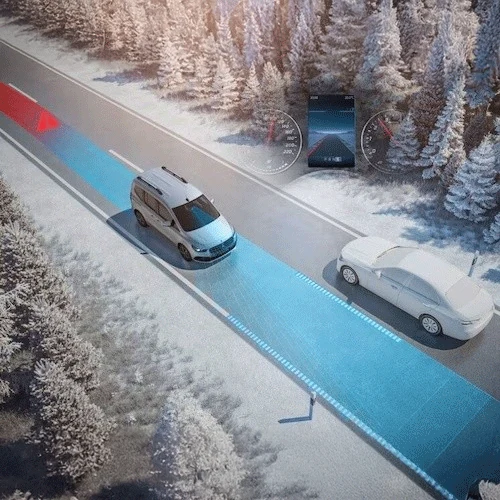

  • Active assistants (brake, distance, lane keeping, cruise control, hill descent)

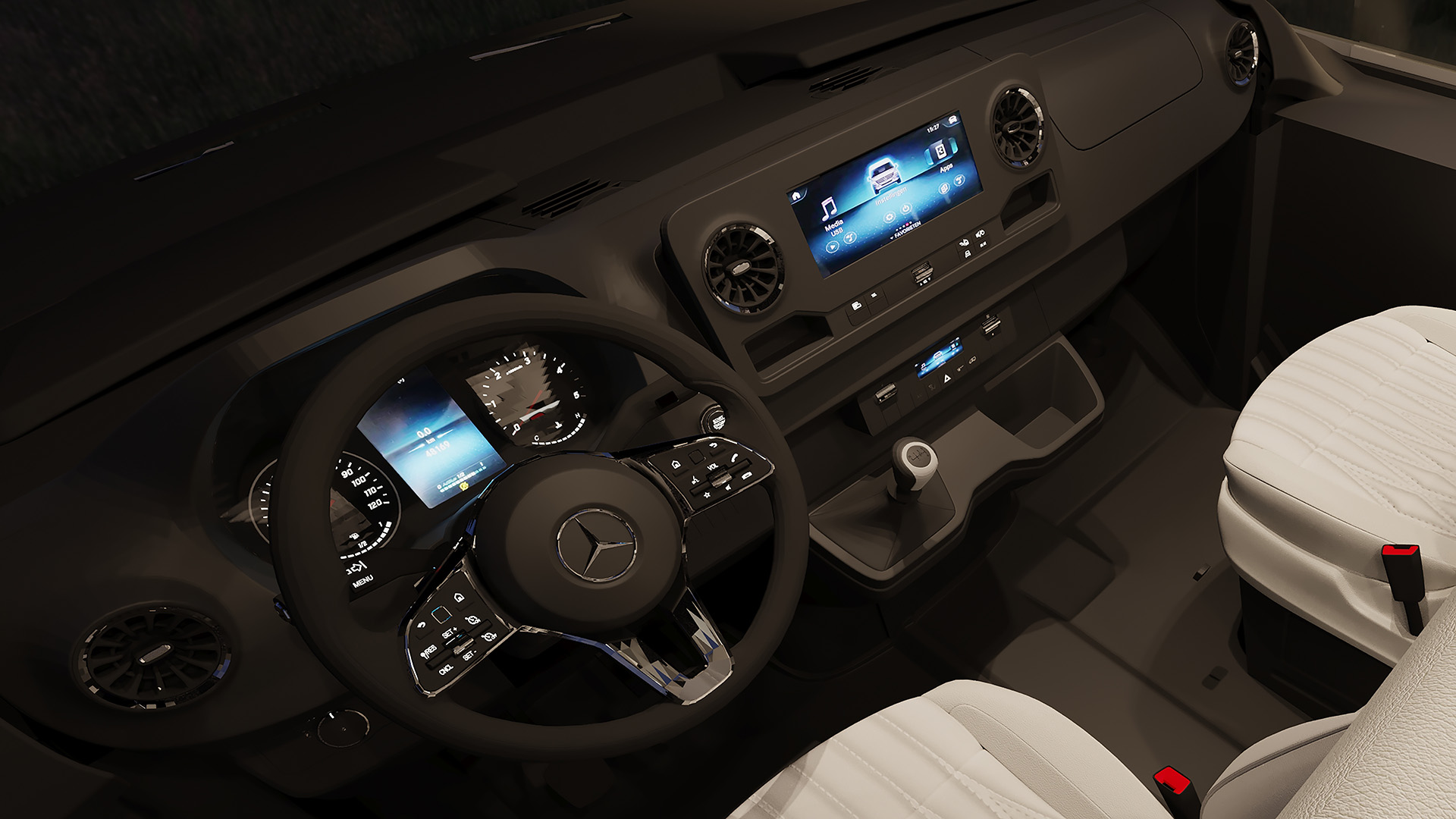

  • 10,25″ MBUX with navigation, USB-C and wireless charging
  • Automatic windshield wiper system
  • Electronic parking brake
  • AL-KO chassis
  • Weight when laden: 3500 kg (4200 kg optional)
  • Exterior dimensions (LxWxH): 7,20 x 2,30 x 3,00 m
  • Interior dimensions (LxWxH): 7,00 x 2,22 x 2,00 m
  • Wall thickness (mm): 33 mm for walls, roof and floor

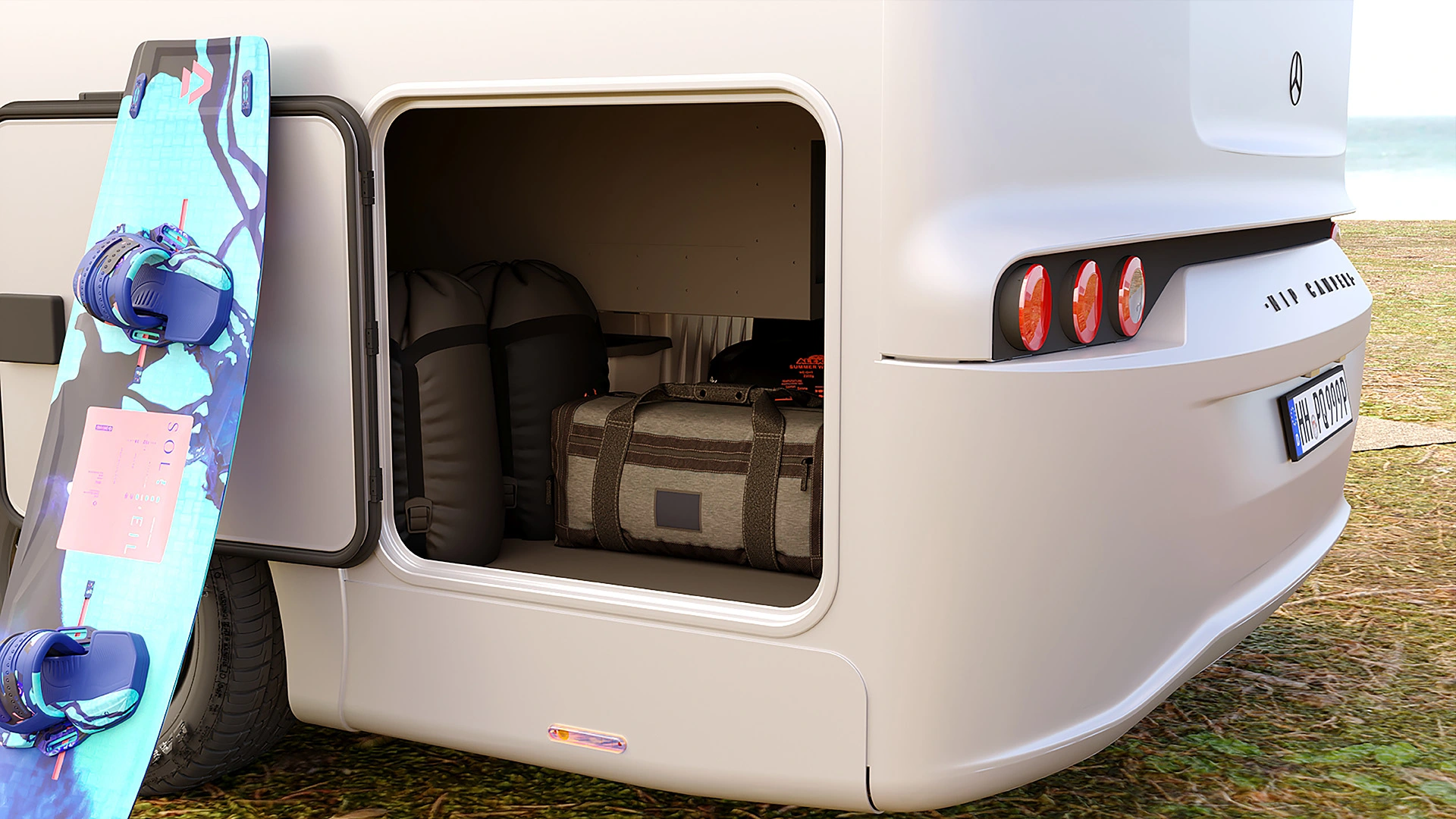

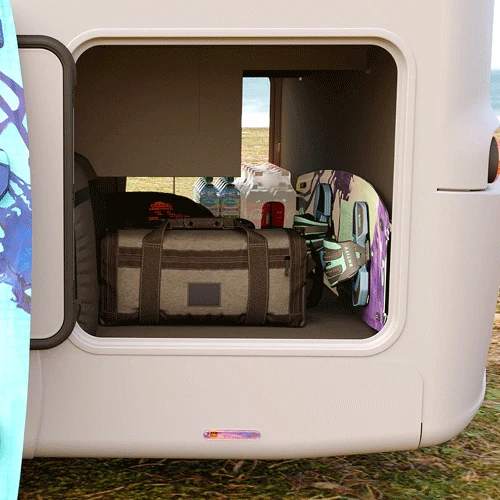

  • Rear garage door size (WxH): 80×70 cm, with access on both sides

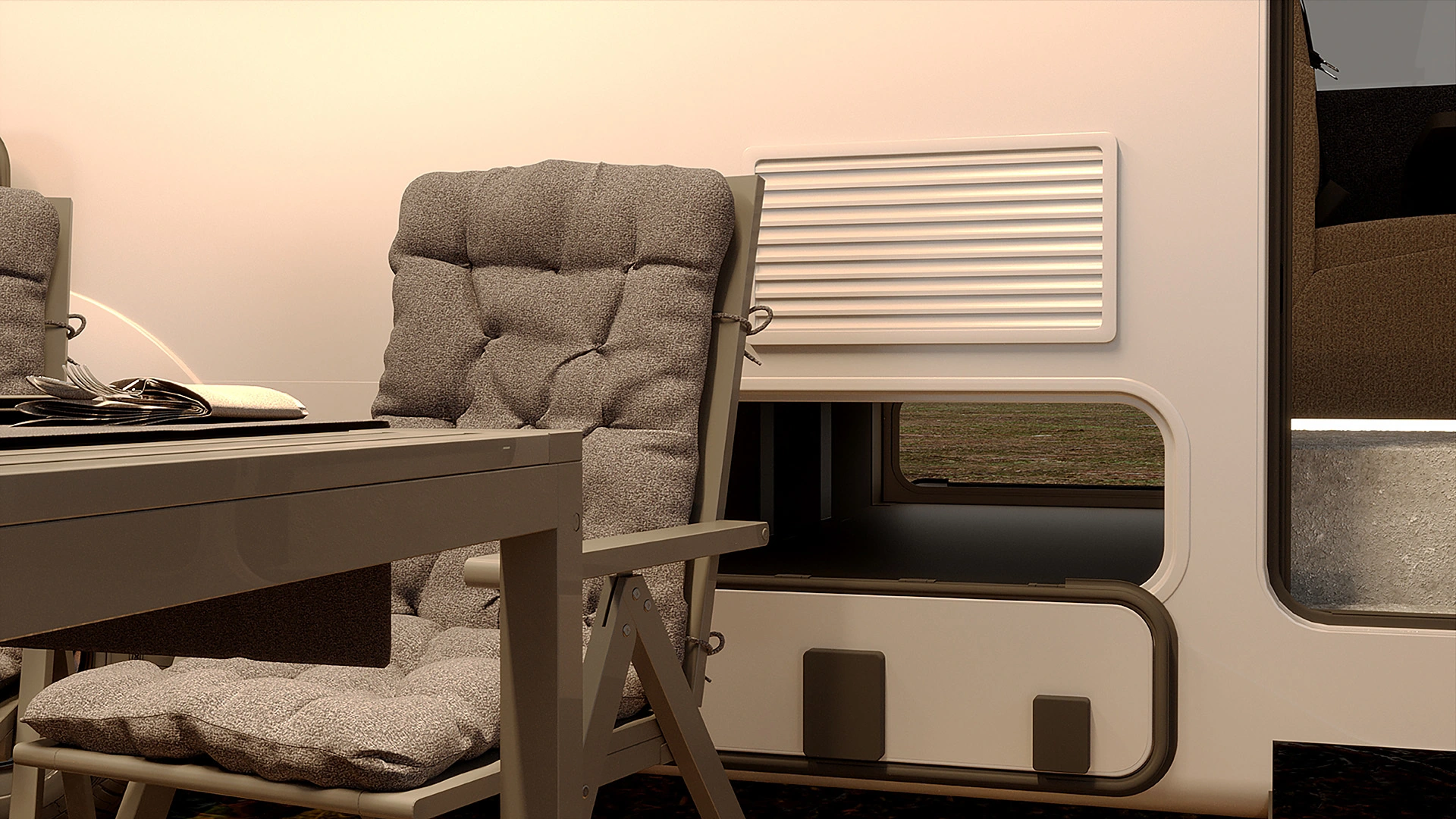

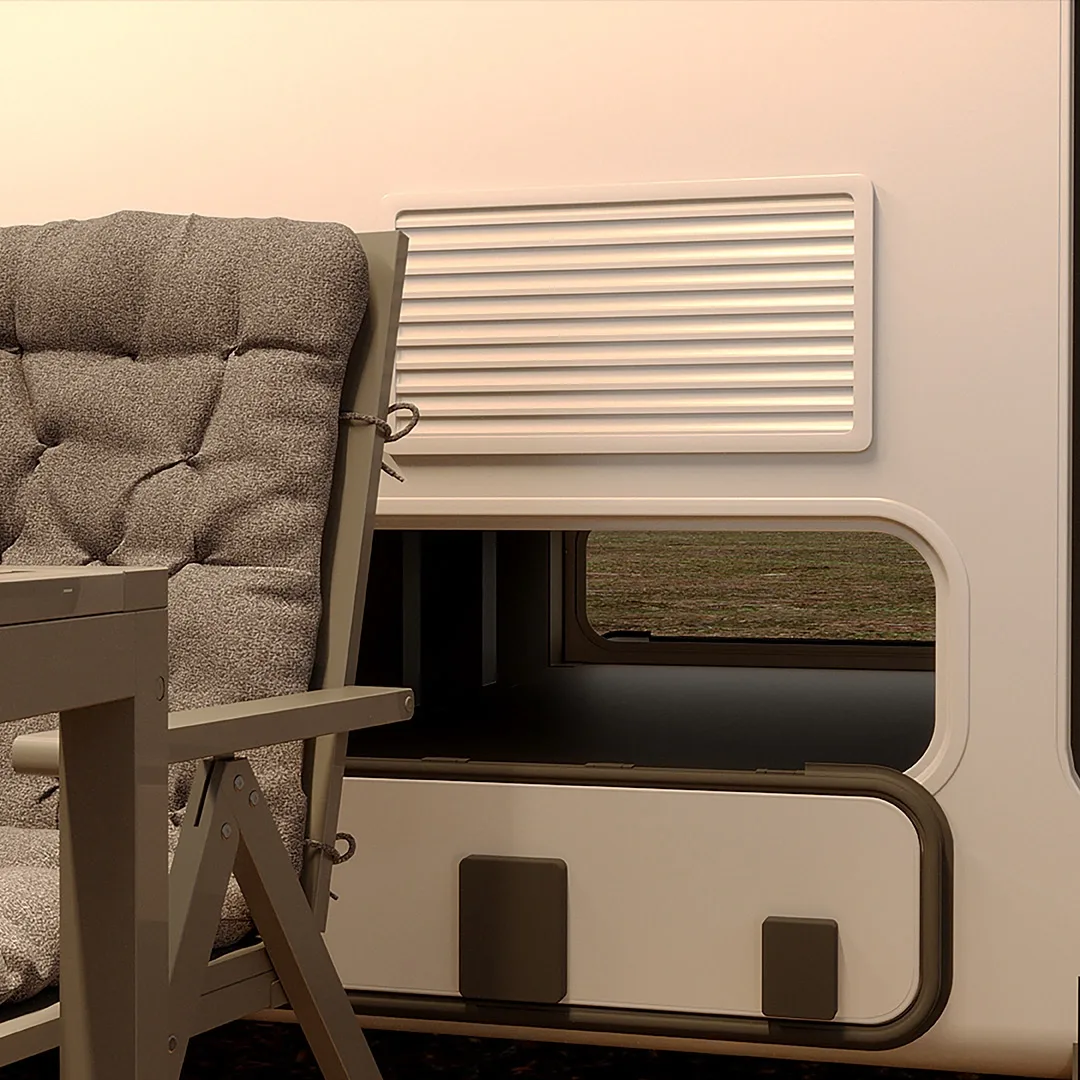

  • Middle garage door size (WxH): 100×33 cm, with access on both sides

Living Area Features and Specs

  • Front seating area with swivel seats for up to 4 people
  • Rear U-shaped seating area for up to 6 people with 360° outside view
  • Sleeps 4 people (+2 people optional) and a small pet
  • 2 fall-down beds (front and rear, 140x190cm), plus a rear lounge converting into a bed
  • 2 room dividers

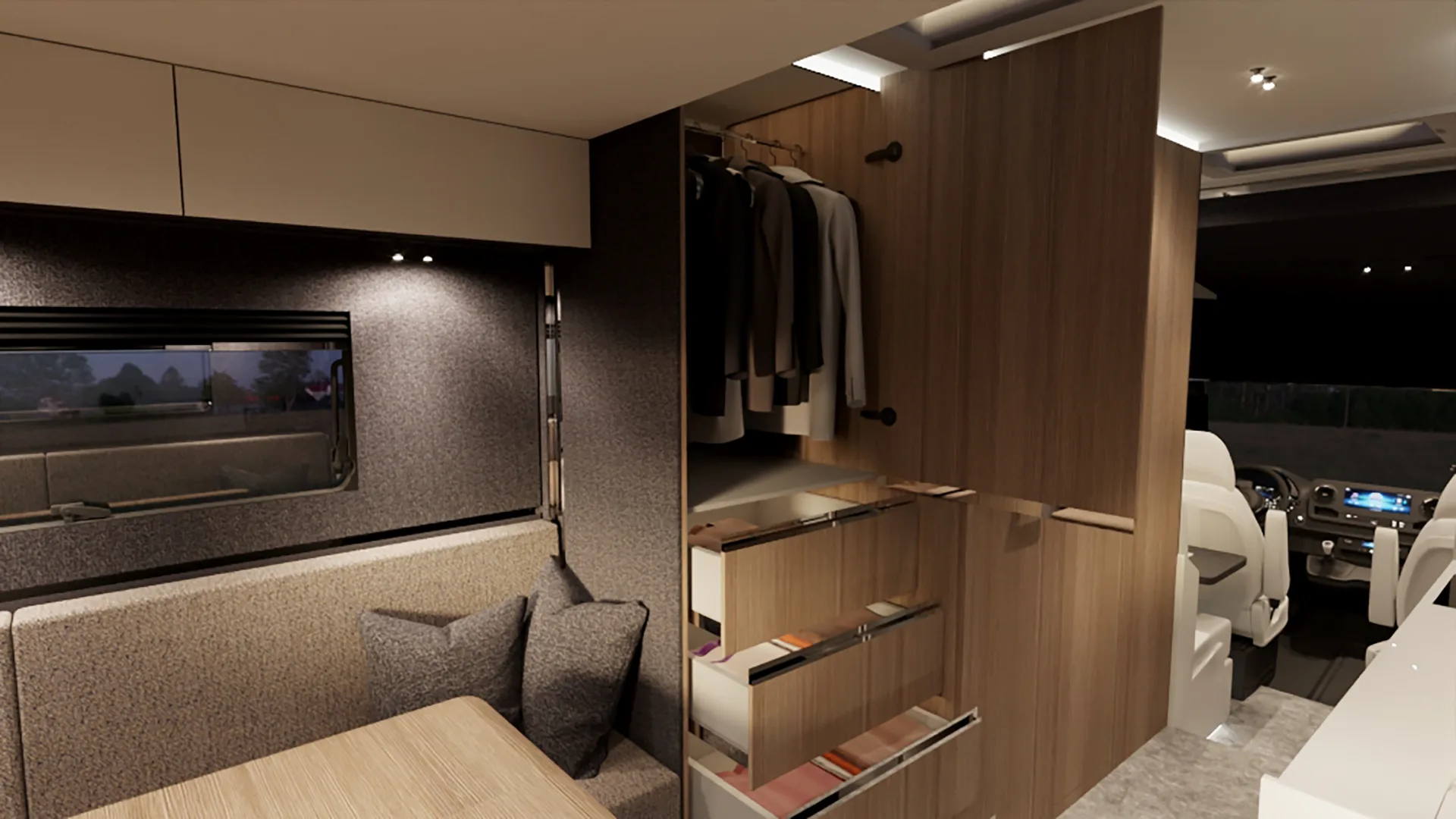

  • Wardrobe with 4 drawers 60x65x200 cm

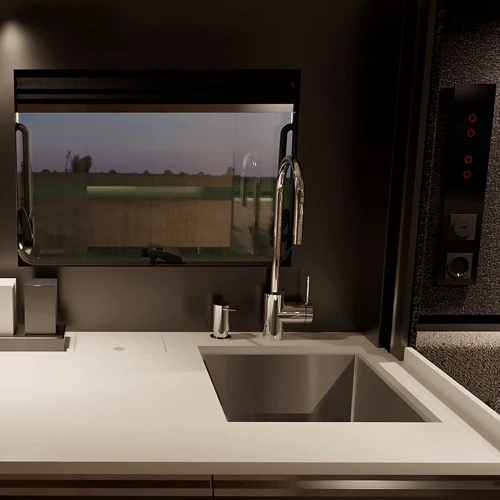

  • Kitchen: a 2 burner hob, a 34x40cm domestic sink and domestic mixer, a 141L fridge, an oven
  • Bathroom: a large disappearing sink, a water-saving shower and a cassette toilet
  • Smart control panel for controlling electrics, water, AC, fridge, heating and more
  • Media: 40″ TV-equivalent or larger; Bluetooth audio speaker
  • HVAC: a gas/diesel heater, plus an integrated 12V split air conditioner, 8.5K BTUs
  • Water: min. 150L fresh water (20L in drive position); 120L gray water
  • Batteries: 2×100Ah LiFePO4 (additional batteries optional)
  • Solar power: 800W
  • Alternator: high output 220A, 14V
  • LPG: undermount 58L tank
  • Available storage space: top cabinets, two pantries in the kitchen, rear garage (70x100x220cm), middle garage (83x33x220cm), dedicated shoe storage next to the entry door
  • Rear bike rack for 4 bikes
  • Awning 4.5×2.5m

Features and Specifications

Vehicle Safety and Features

  • Mercedes-Benz 170 HP Diesel Euro VI
  • Front-wheel drive
  • 9G-TRONIC automatic transmission
  • 92 L fuel tank
  • Four seatbelts (all in the front of the motorhome), ISOFIX
  • Driver and passenger airbags
  • Full exterior LED lightning (daytime, high/low beam, side indicators, fog, tail lights, etc.)
  • Sideview cameras, reversing camera and parking sensors
  • Active assistants (brake, distance, lane keeping, cruise control, hill descent)
  • 10,25″ MBUX with navigation, USB-C and wireless charging
  • Automatic windshield wiper system
  • Electronic parking brake
  • AL-KO chassis
  • Weight when laden: 3500 kg (4200 kg optional)
  • Exterior dimensions (LxWxH): 7,20 x 2,30 x 3,00 m
  • Interior dimensions (LxWxH): 7,00 x 2,22 x 2,00 m
  • Wall thickness (mm): 33 mm for walls, roof and floor
  • Rear garage door size (WxH): 80×70 cm, with access on both sides
  • Middle garage door size (WxH): 100×33 cm, with access on both sides

Living Area Features and Specs

  • Front seating area with swivel seats for up to 4 people
  • Rear U-shaped seating area for up to 6 people with 360° outside view
  • Sleeps 4 people (+2 people optional) and a small pet
  • 2 fall-down beds (front and rear, 140x190cm), plus a rear lounge converting into a bed
  • 2 room dividers
  • Wardrobe with 4 drawers 60x65x200 cm
  • Kitchen: a 2 burner hob, a 34x40cm domestic sink and domestic mixer, a 141L fridge, an oven
  • Bathroom: a large disappearing sink, a water-saving shower and a cassette toilet
  • Smart control panel for controlling electrics, water, AC, fridge, heating and more
  • Media: 40″ TV-equivalent or larger; Bluetooth audio speaker
  • HVAC: a gas/diesel heater, plus an integrated 12V split air conditioner, 8.5K BTUs
  • Water: min. 150L fresh water (20L in drive position); 120L gray water
  • Batteries: 2×100Ah LiFePO4 (additional batteries optional)
  • Solar power: 800W
  • Alternator: high output 220A, 14V
  • LPG: undermount 58L tank
  • Available storage space: top cabinets, two pantries in the kitchen, rear garage (70x100x220cm), middle garage (83x33x220cm), dedicated shoe storage next to the entry door
  • Rear bike rack for 4 bikes
  • Awning 4.5×2.5m
